M8 3pins A code male straight rear panel mount connector, unshielded, single wires

INDUS-CONNECTOR M8 PCB connectors are front and rear bulkhead mounted M8 connectors designed for easy handling on the PCB and compatibility with wave soldering processes. M8 PCB connectors include an incorporated wire clip with an integrated PCB retention feature to secure it in the PCB during the reflow process, individual wires come stripped and pre-tinned ready for soldering.
Inquire Online
Download

General information

Part no  8D002
Brand

Indus-c

MOQ

100

Place of origin     Shenzhen city, China
Delivery time

3 weeks


General features

Standards IEC 61076-2-104

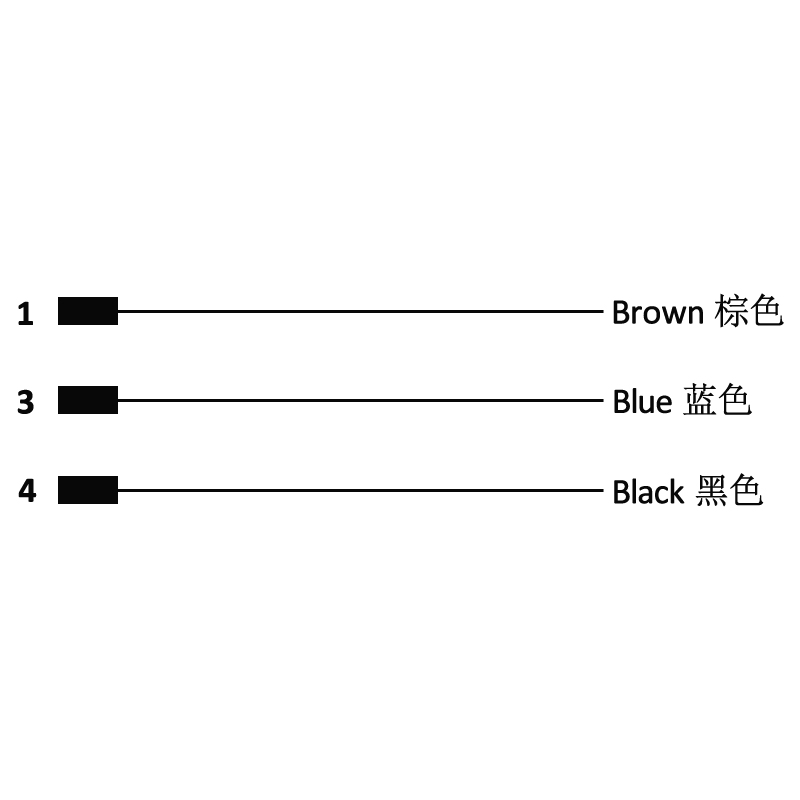

Termination With single wires
Connector locking system Screw
Degree of protection IP67, IP68, IP69K
Wire gauge(mm²) 0.14mm²-0.34mm²
Wire gauge(AWG) 26AWG-22AWG
Mechanical operation >100 mating cycles
Ambient temperature(operation) -25°C~+85°C
Customs tariff number  8538900000
Environmental compliance   RoHS, Reac

Electrical parameters

3Pin 60V
Rated voltage 3A
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ

Material

Connector body TPU
Pin Brass with gold plated
Screw Brass with nickel plated
