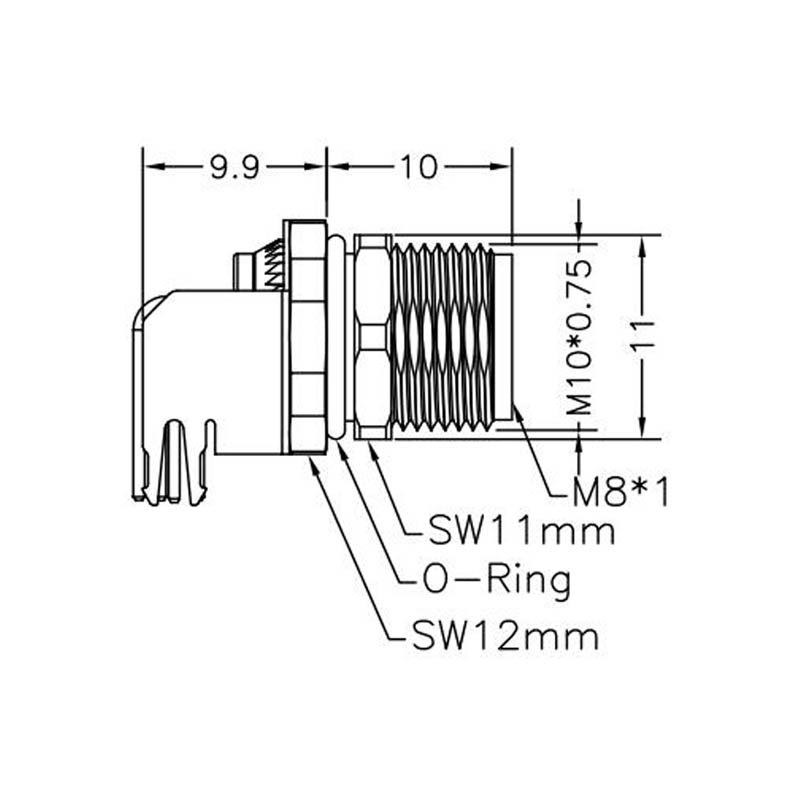

.jpg "M8 4pins A code female right angle front panel mount connector,unshielded,insert,brass with nickel plated shell")
.jpg "M8 4pins A code female right angle front panel mount connector,unshielded,insert,brass with nickel plated shell")
.jpg "M8 4pins A code female right angle front panel mount connector,unshielded,insert,brass with nickel plated shell")
| Part no | 8B041 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
| Standards | IEC 61076-2-104 |
| Termination | Dip-solder |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reac |

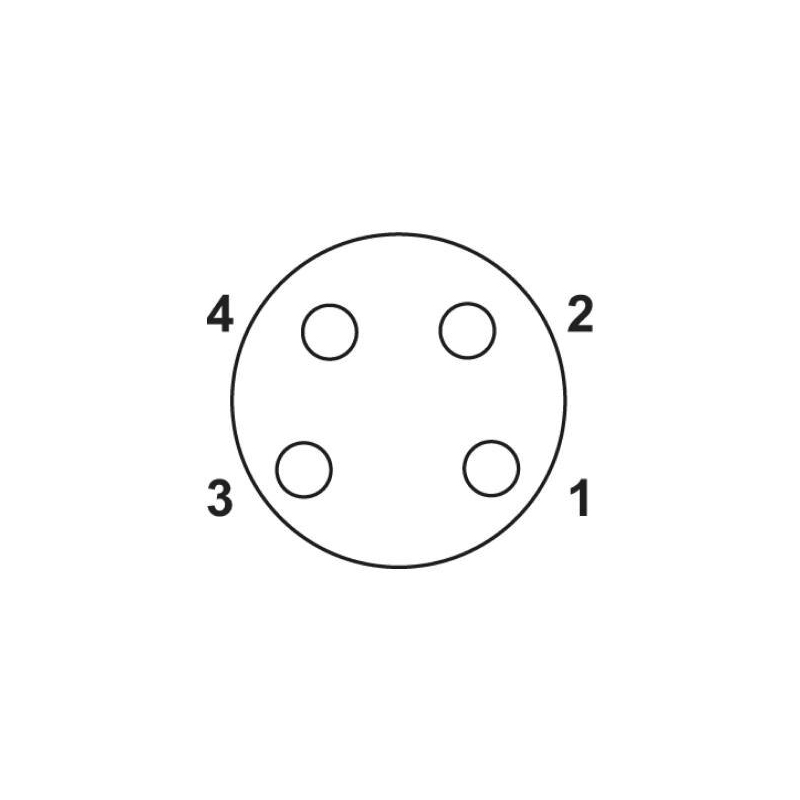

| 4Pin | 30V |
| Rated voltage | 3A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector body | TPU |
| Pin | Phosphorus copper with gold plated |
| Nut and shell | Brass with nickel plated |
| Gasket | Fluorine ring |
| RoHS & REACH Declaration | 8B041 |
INDUS-CONNECTOR M8 PCB connectors are front and rear bulkhead mounted M8 connectors designed for easy handling on the PCB and compatibility with wave soldering processes. M8 PCB connectors include an incorporated wire clip with an integrated
View More
INDUS-CONNECTOR M8 PCB connectors are front and rear bulkhead mounted M8 connectors designed for easy handling on the PCB and compatibility with wave soldering processes. M8 PCB connectors include an incorporated wire clip with an integrated
View More
INDUS-CONNECTOR M8 PCB connectors are front and rear bulkhead mounted M8 connectors designed for easy handling on the PCB and compatibility with wave soldering processes. M8 PCB connectors include an incorporated wire clip with an integrated
View More
INDUS-CONNECTOR M8 PCB connectors are front and rear bulkhead mounted M8 connectors designed for easy handling on the PCB and compatibility with wave soldering processes. M8 PCB connectors include an incorporated wire clip with an integrated
View More
