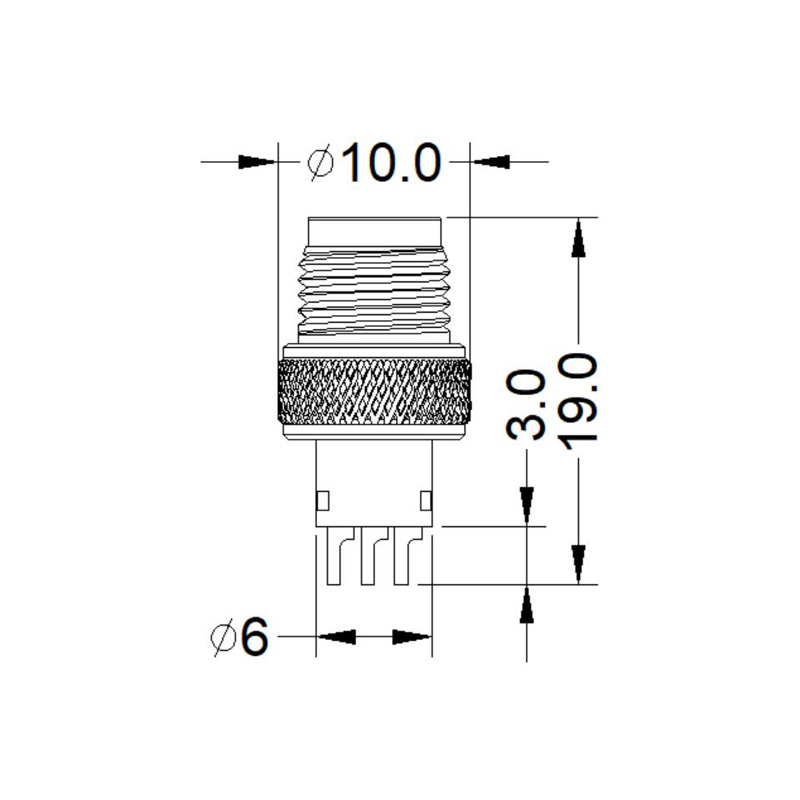

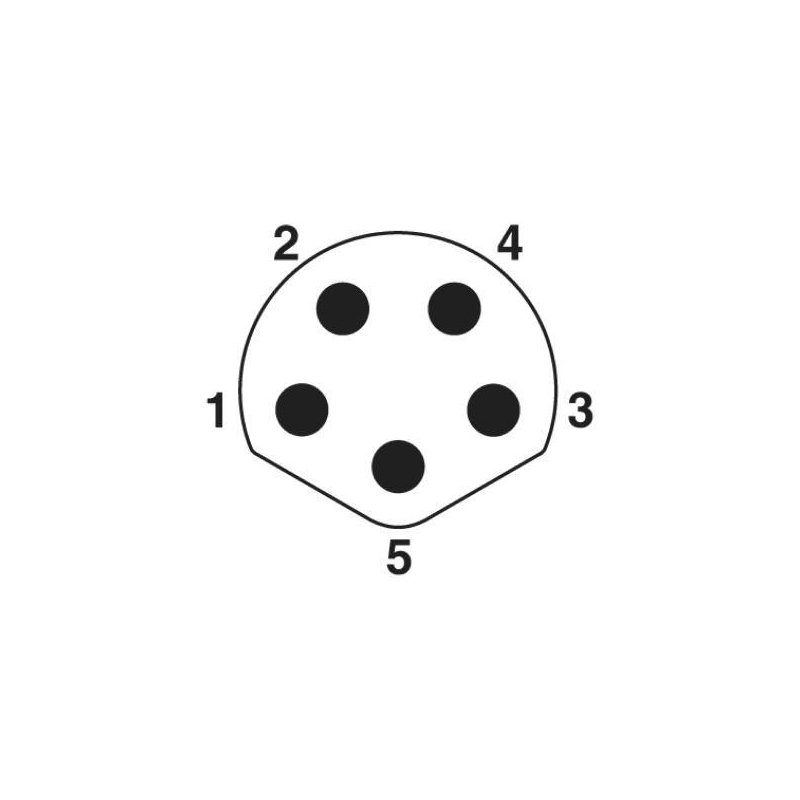

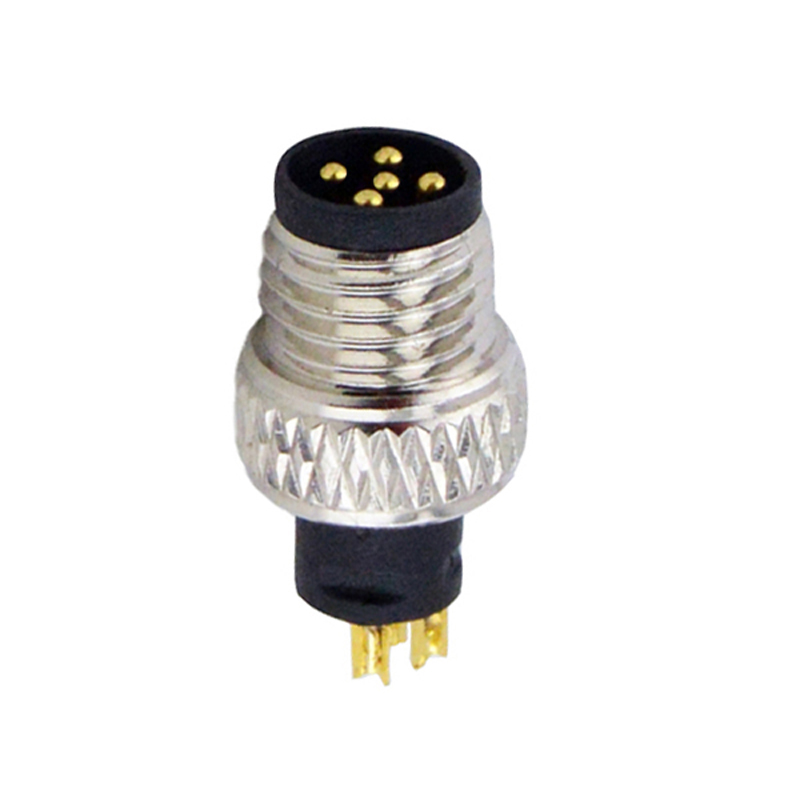

M8 5pins B code male moldable connector,unshielded,brass with nickel plated screw

M8 moldable connector with solder cup pin for wire soldering. This connector is often used for over-mold cable and junction box with IP68 waterproof when mated.
Inquire Online
Download

General information

Part no  8C045
Brand

Indus-c

MOQ

100

Place of origin     Shenzhen city, China
Delivery time

3 weeks


General features

Standards IEC 61076-2-104
Termination Solder
Connector locking system Screw
Degree of protection IP67, IP68, IP69K
Wire gauge(mm²) 0.14mm²-0.34mm²
Wire gauge(AWG) 26AWG-22AWG
Mechanical operation >100 mating cycles
Ambient temperature(operation) -25°C~+85°C
Customs tariff number  8538900000
Environmental compliance   RoHS, Reac

Electrical parameters

Connector body TPU
Pin Brass with gold plated
Screw Brass with nickel plated

Material

5Pin 30V
Rated voltage 3A
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ

Download

RoHS & REACH Declaration 8C045

NEED MORE INFORMATIONS?

Contact us

mating connectors
