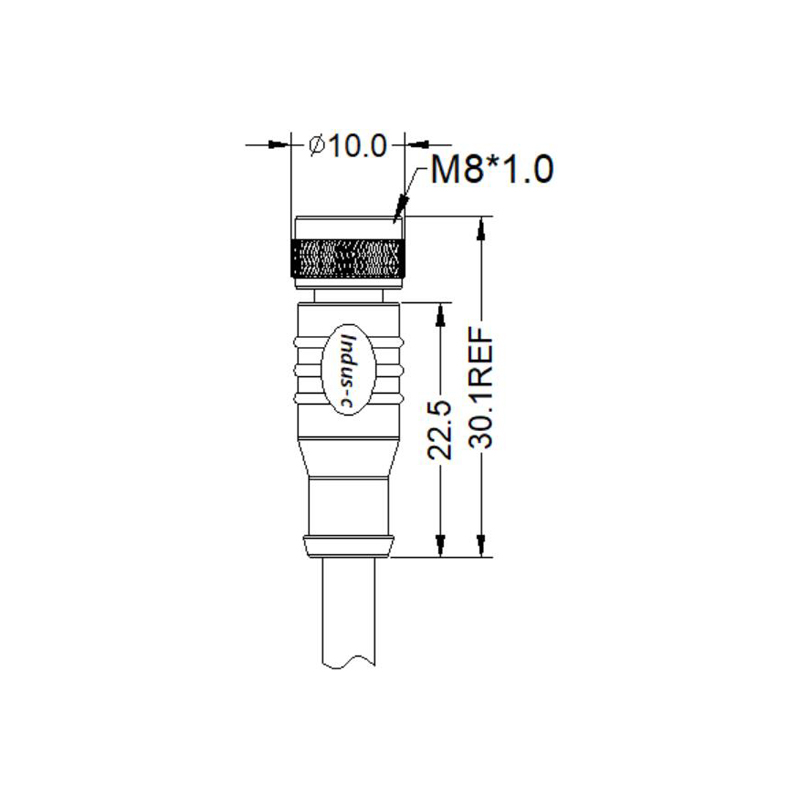

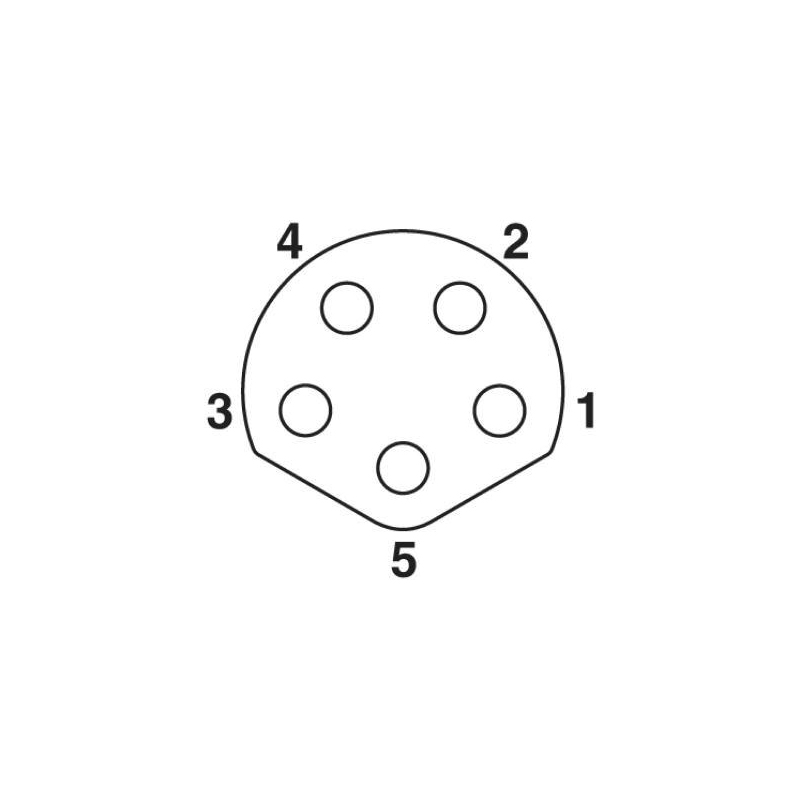

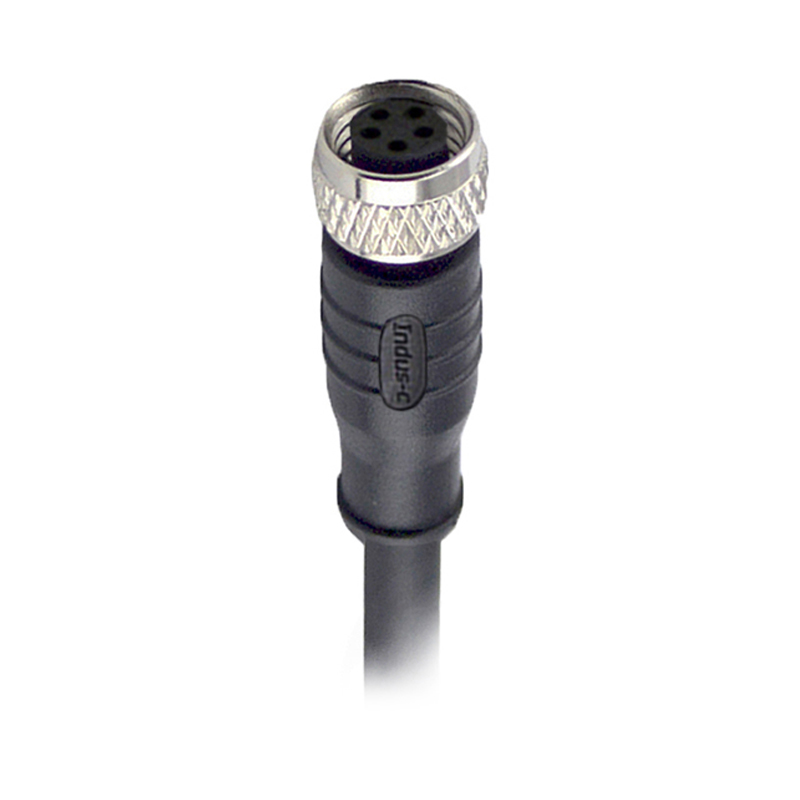

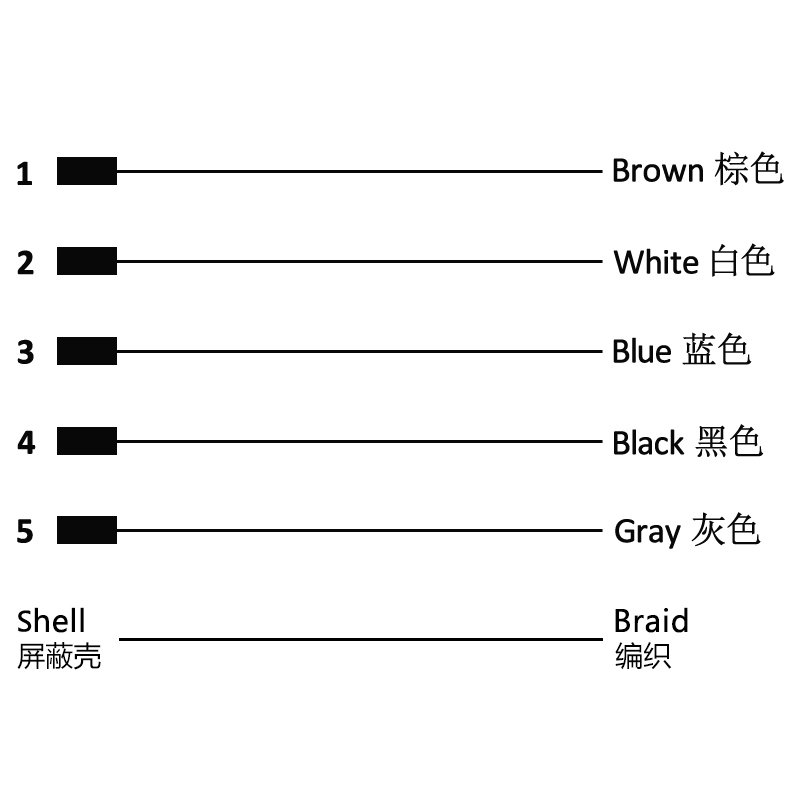

M8 5pins B code female straight molded cable,shielded,PVC,-40°C~+105°C,24AWG 0.25mm²,brass with nickel plated screw

M8 cable assembly according to IEC 61076-2-104 has A code 3pins, 4pins, 6pins, 8pins and B code 5pins. The highest waterproof grade is IP69K. Any length is available. INDUS-CONNECTOR always provide customized design to cover the whole requirement.
Inquire Online
Download

General information

Part no
8L00148
Brand

Indus-c

MOQ

100

Place of origin     Shenzhen city, China
Delivery time

3 weeks


General features

Standards IEC 61076-2-105
Termination Solder and over-mold
Connector locking system Screw
Degree of protection IP67, IP68, IP69K
Wire gauge(mm²) 0.14mm²-0.34mm²
Wire gauge(AWG) 26AWG-22AWG
Mechanical operation >100 mating cycles
Ambient temperature(operation) -40°C~+105°C
Customs tariff number  8518900001
Environmental compliance   RoHS, Reac

Electrical parameters

5Pin 30V
Rated voltage 3A
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ

Material

Connector body TPU
Pin Phosphorus copper with gold plated
Screw Brass with nickel plated

Download

RoHS & REACH Declaration 8L00148

NEED MORE INFORMATIONS?

Contact us

mating connectors

Copyright © Indus-c@ Co., Ltd. All Rights Reserved. Sitemap
首页 >
  • M8 5pins B code female straight molded cable,shielded,PVC,-40°C~+105°C,24AWG 0.25mm²,brass with nickel plated screw
  • M8 5pins B code female straight molded cable,shielded,PVC,-40°C~+105°C,24AWG 0.25mm²,brass with nickel plated screw
  • M8 5pins B code female straight molded cable,shielded,PVC,-40°C~+105°C,24AWG 0.25mm²,brass with nickel plated screw
  • M8 5pins B code female straight molded cable,shielded,PVC,-40°C~+105°C,24AWG 0.25mm²,brass with nickel plated screw
  • M8 5pins B code female straight molded cable,shielded,PVC,-40°C~+105°C,24AWG 0.25mm²,brass with nickel plated screw
  • M8 5pins B code female straight molded cable,shielded,PVC,-40°C~+105°C,24AWG 0.25mm²,brass with nickel plated screw
  • M8 5pins B code female straight molded cable,shielded,PVC,-40°C~+105°C,24AWG 0.25mm²,brass with nickel plated screw
  • M8 5pins B code female straight molded cable,shielded,PVC,-40°C~+105°C,24AWG 0.25mm²,brass with nickel plated screw

M8,5针,B型母头直头成型式连接线,带屏蔽,PVC,-40°C~+105°C,26AWG 0.14mm²,黄铜镀镍螺丝

金达思B型M8面板式连接器分为前锁安装和后锁安装。然而面板式连接器又分为板端、焊线式和带线。请联系我们选择正确的产品。
询价
下载

常规信息

料号  8L00148
品牌

Indus-c

最小订单量

100

原产地     中国,深圳市
交货期

3周


产品特点

标准 IEC 61076-2-104
焊接方式 焊接和成型
锁紧方式 螺锁
防护等级 IP67, IP68, IP69K
线规(平方数) 0.14mm²-0.34mm²
线号(平方数) 26AWG-22AWG
插拔次数 >100次
操作温度 -25°C~+85°C
海关编码 8518900001
环境符合标准 RoHS, Reach

参数

5针 30V
额定电流  3A
接触电阻 ≤5mΩ
绝缘电阻 ≥100MΩ

原料

成型 TPU
母端子 磷铜镀金
公端子 黄铜镀金
螺丝 黄铜镀镍
