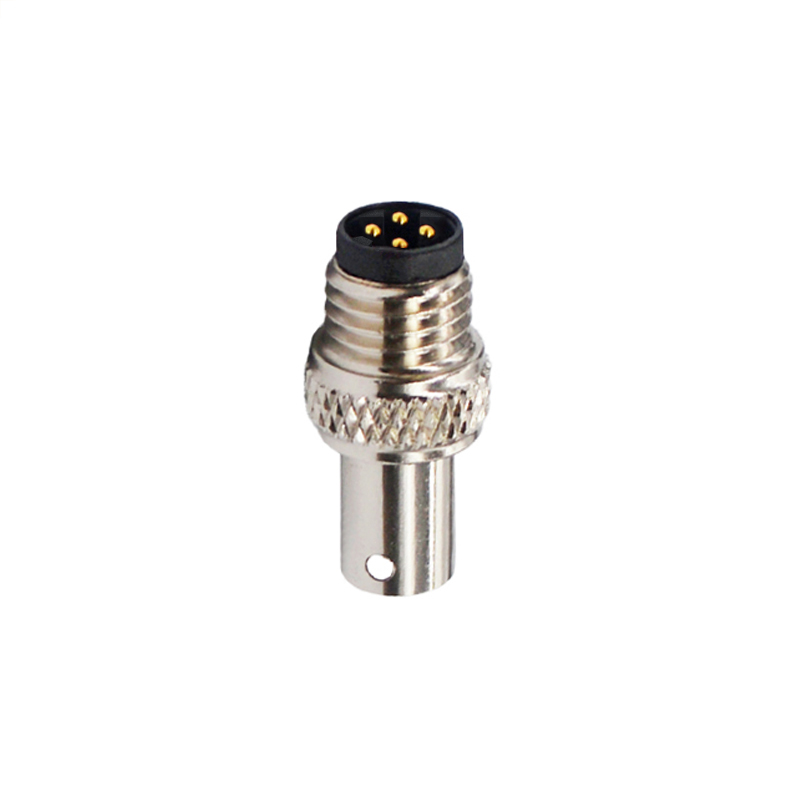

M8 4pins D male moldable connector with shielded,brass with nickel plated screw
Inquire Online
Download
General information
| Part no | 8C131 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-104 |
| Termination | Solder |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm²-0.34mm² |
| Wire gauge(AWG) | 26AWG-22AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reach |
Electrical parameters
| 4Pin | 30V |
| Rated voltage | 3A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
Material
| Connector body | TPU |
| Pin | Brass with gold plated |
| Screw | Brass with nickel plated |
Download
| RoHS & REACH Declaration | 8C131 |
NEED MORE INFORMATIONS?
Contact usmating connectors
-
M8 4pins D male moldable connector,unshielded,brass with nickel plated screw -
M8 4pins D male moldable connector with shielded,brass with nickel plated screwPart no 8C131 Brand Indus-c MOQ 100 Place of origin Shenzhen city, China Delivery time 3 weeks
View More -

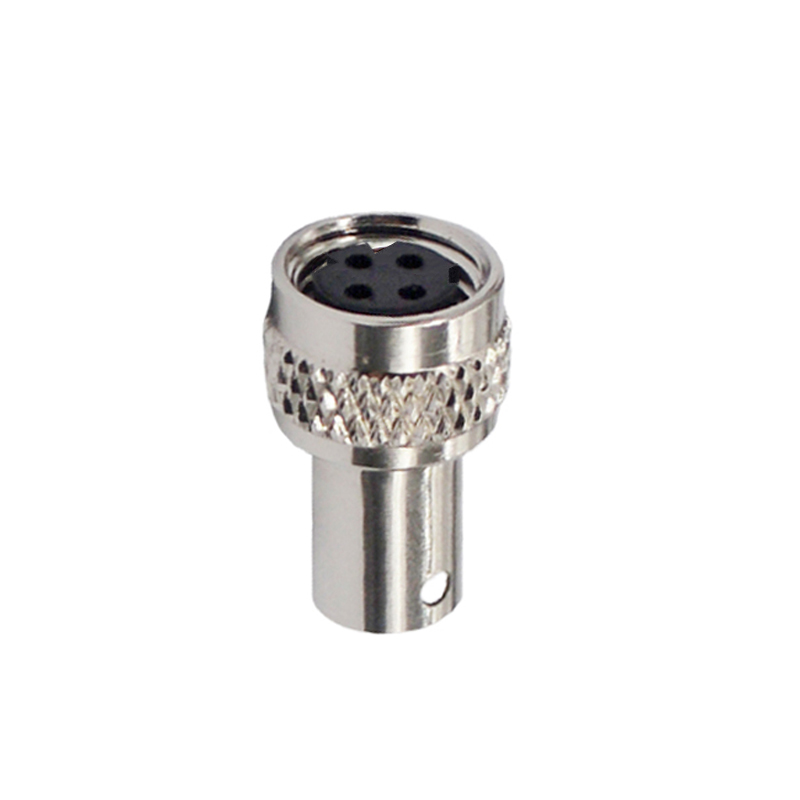

M8 4pins D female moldable connector with shielded,brass with nickel plated screwPart no 8C132 Brand Indus-c MOQ 100 Place of origin Shenzhen city, China Delivery time 3 weeks
