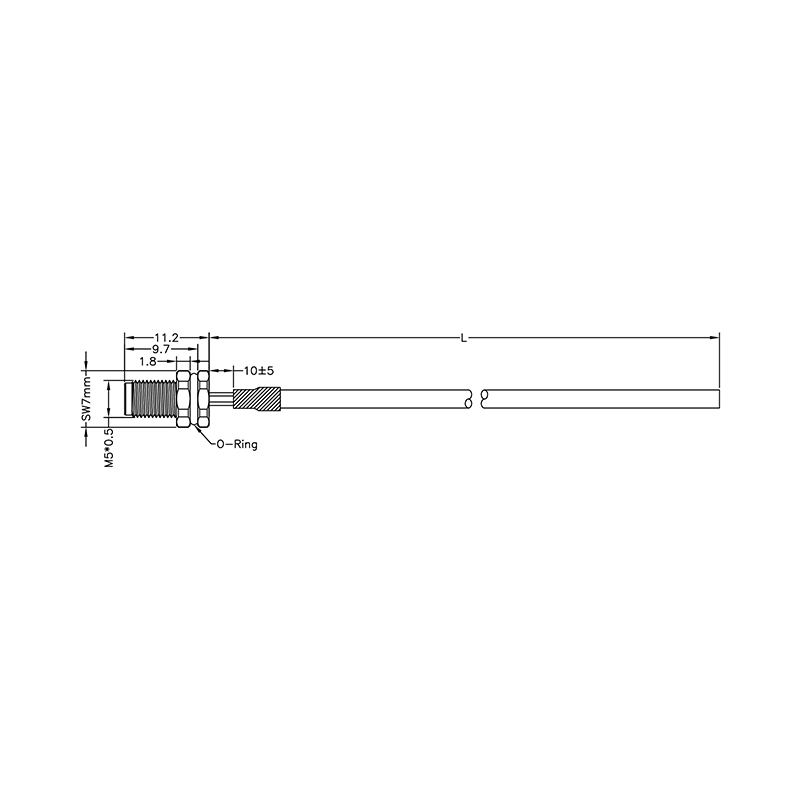

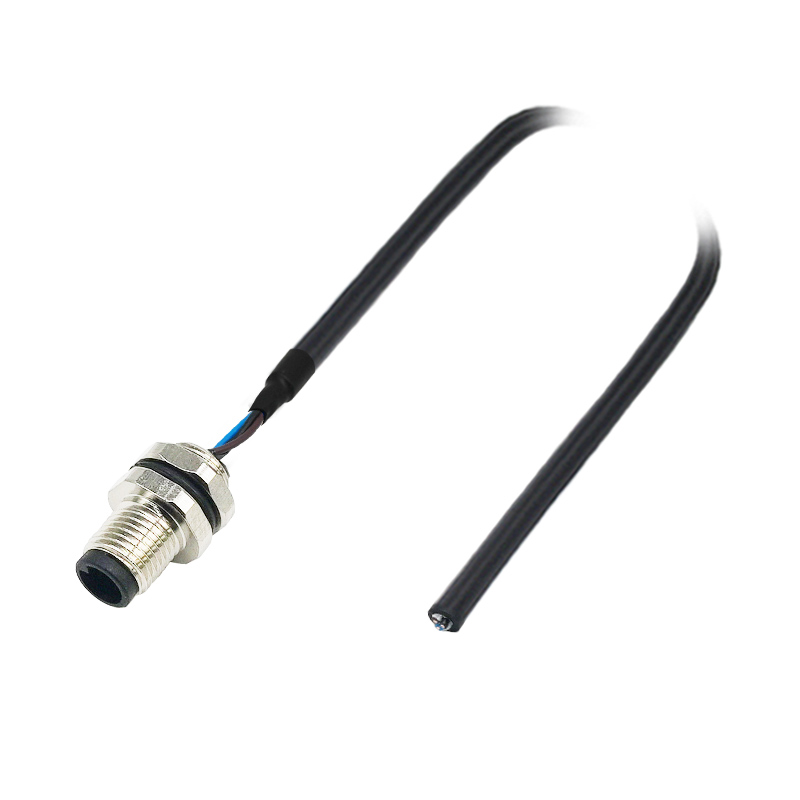

M5 3pins A code male straight front mount connector with cable
Inquire Online
Download
General information
| Part no | 5DL003 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-105 |
| Termination | Screw-locking |
| Connector locking system | Screw |
| Degree of protection | IP67 |
| Wire gauge(mm²) | 0.14mm² |
| Wire gauge(AWG) | 26AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8544422900 |
| Environmental compliance | RoHS, Reach |
Electrical parameters
| 3Pin | 60V |
| Rated voltage | 1A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
Material
| Connector body | PA66+GF |
| Pin | brass with gold plated |
| Nut and shell | Brass with nickel plated |
| Gasket | Fluorine ring |
| Black glue | Epoxy resin |
