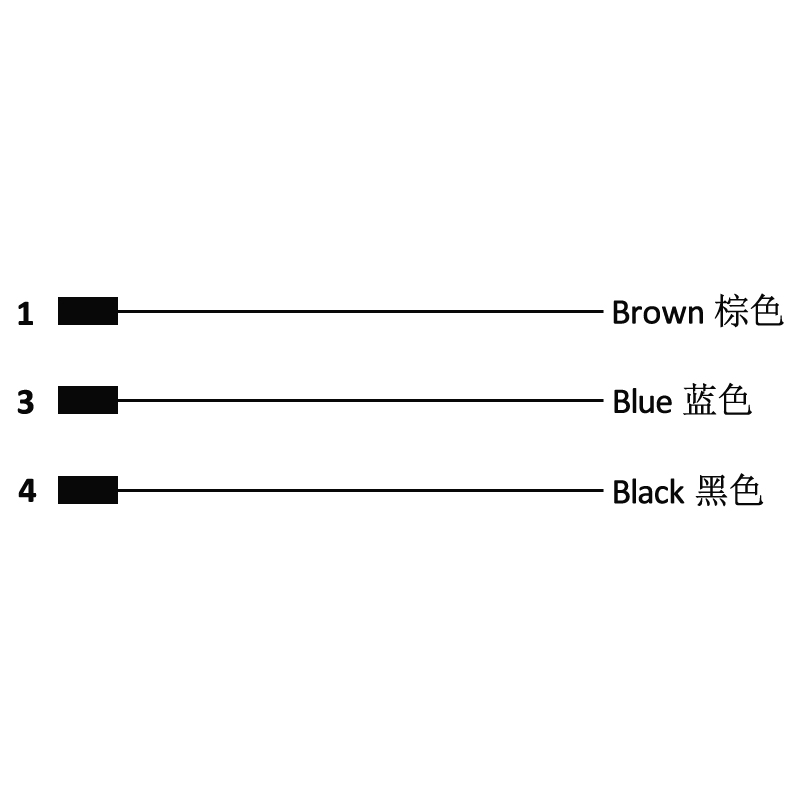

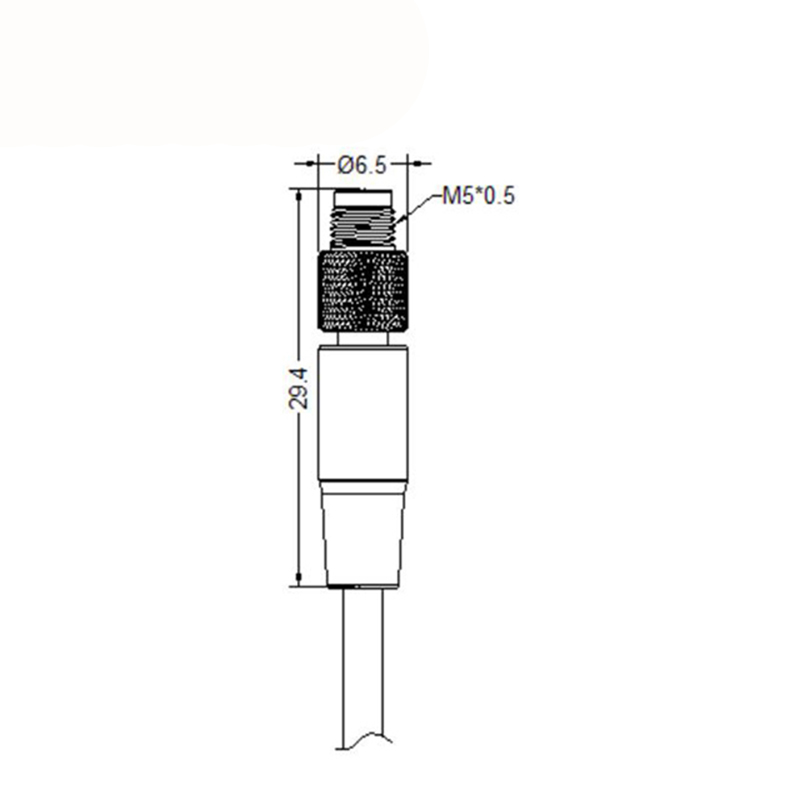

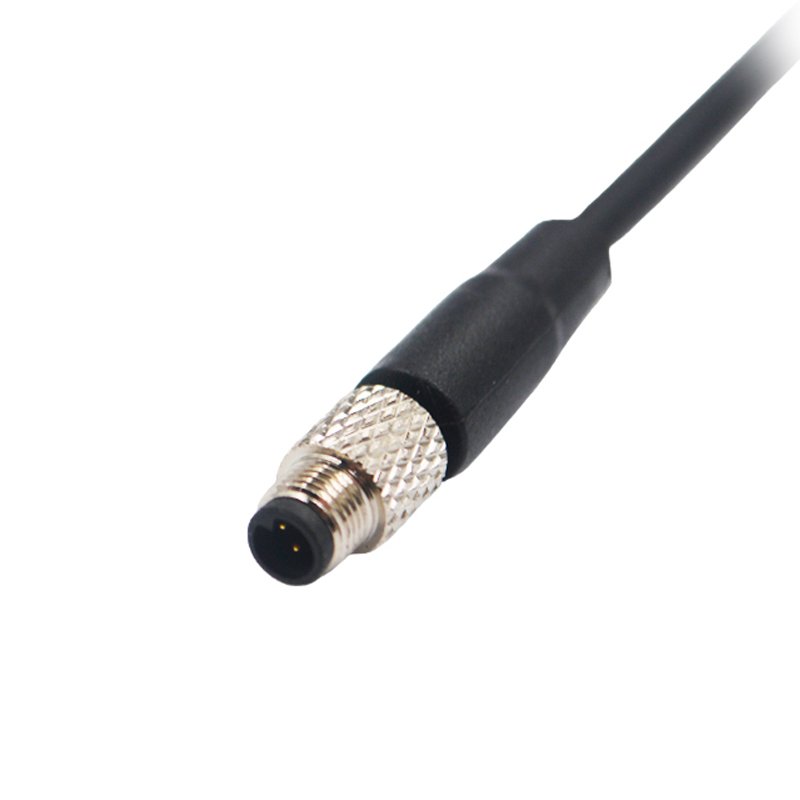

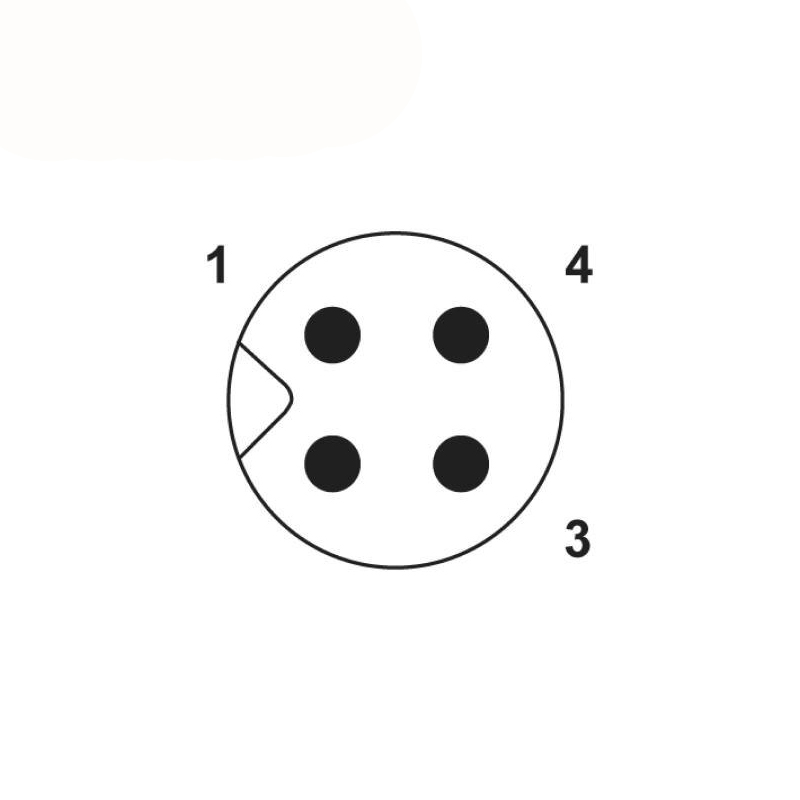

M5 3pins A code male straight cable,unshielded,PUR,-40°C~+105°C,26AWG 0.14mm²,brass with nickel plated screw
M5 cable assembly has 3pins, 4pins. The highest waterproof grade is IP69K. Any length is available. INDUS-CONNECTOR always provide customized design to cover the whole requirements.
Inquire Online
Download
General information
| Part no | 5L017 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-105 |
| Termination | Solder and over-mold |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm² |
| Wire gauge(AWG) | 26AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -40°C~+105°C |
| Customs tariff number | 8518900001 |
| Environmental compliance | RoHS, Reac |
Electrical parameters
| 3Pin | 60V |
| Rated voltage | 1A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
Material
| Connector body | TPU |
| Pin | Brass with gold plated |
| Screw | Brass with nickel plated |
Download
| RoHS & REACH Declaration | 5L017 |
