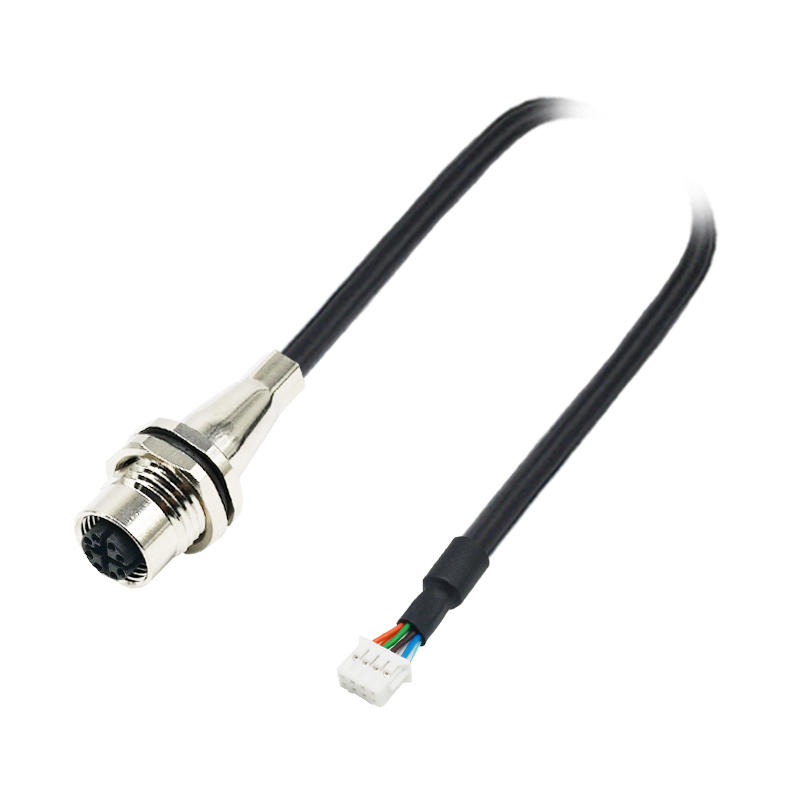

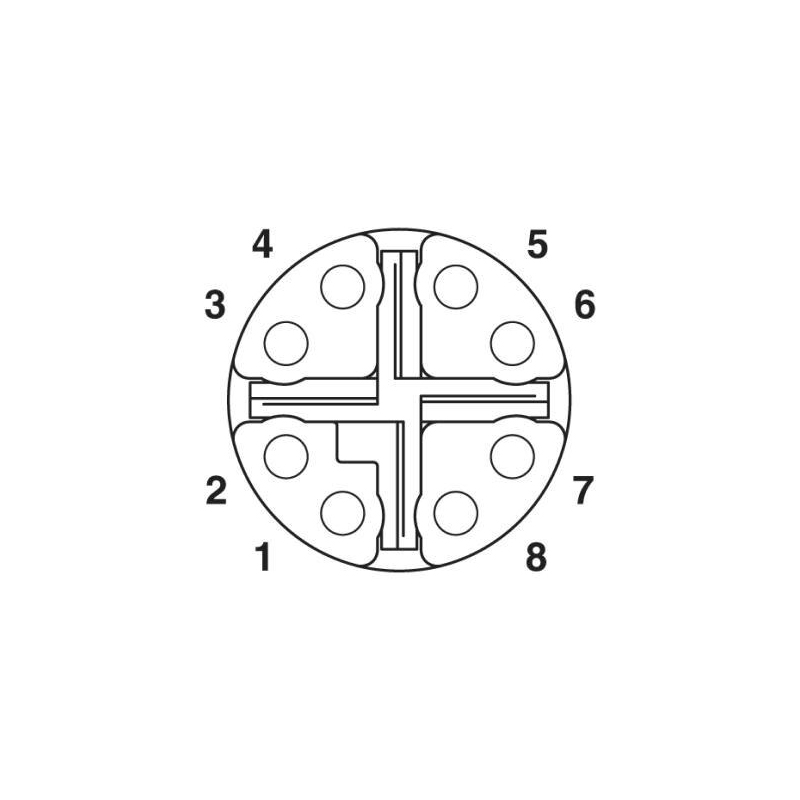

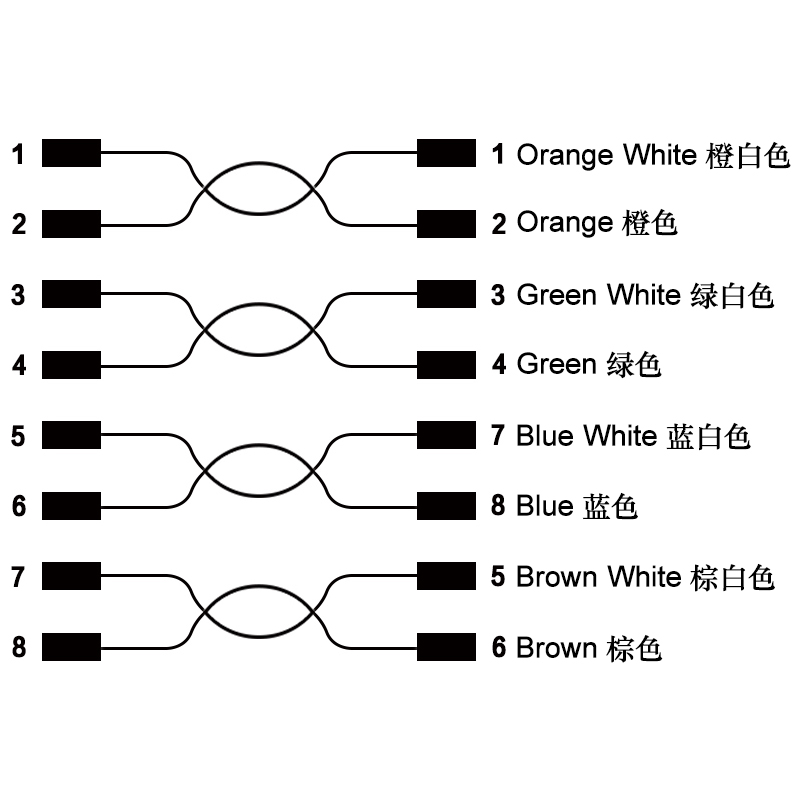

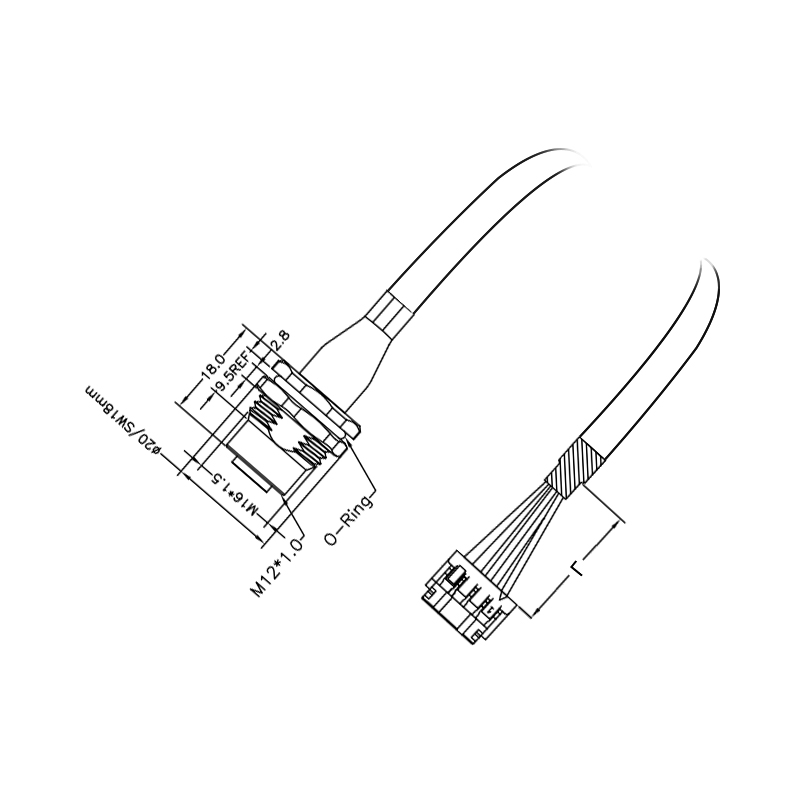

M12 8pins X code female connector to JST PHDR-08VS connector
Inquire Online
Download
General information
| Part no | 12JD051 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-101 |
| Termination | With single wires |
| Connector locking system | Screw-locking |
| Degree of protection | IP67, IP68 |
| Wire gauge(AWG) | 26AWG-22AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reach |
Electrical parameters
| 8Pin | 250V |
| Rated voltage | 4A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | >100MΩ |
Material
| Connector body | TPU |
| Pin | Phosphorus copper with gold plate |
| Nut and shell | Brass with nickel plated |
| Gasket | Fluorine ring |
| Black glue | Epoxy resin |
Download
NEED MORE INFORMATIONS?

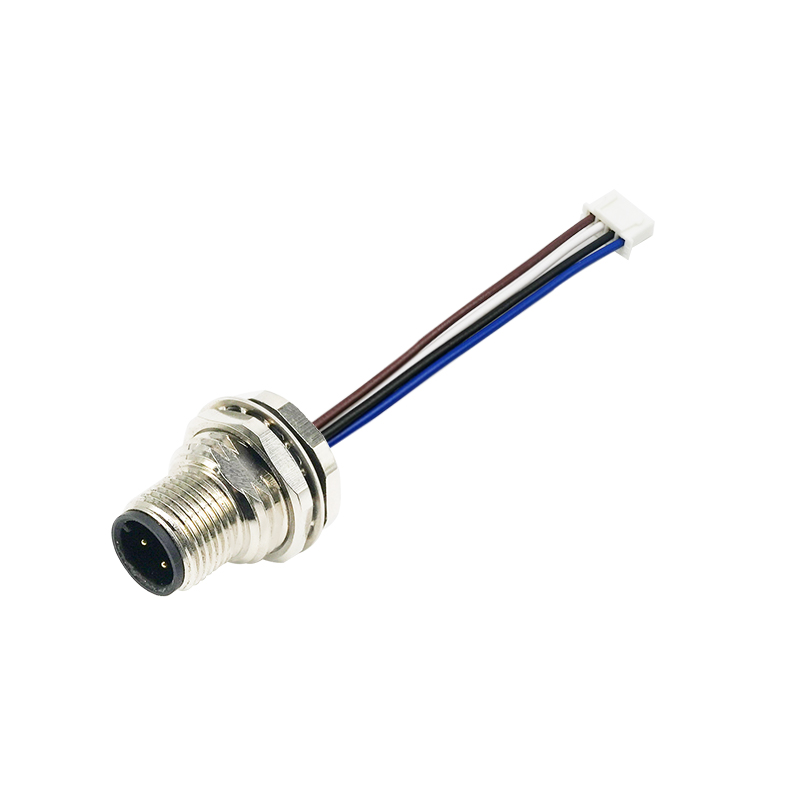

Contact usmating connectors
-
