Part no 12DSUBL00016 Brand Indus-c MOQ 100 Place of origin
View More
EN / 中文
EN / 中文

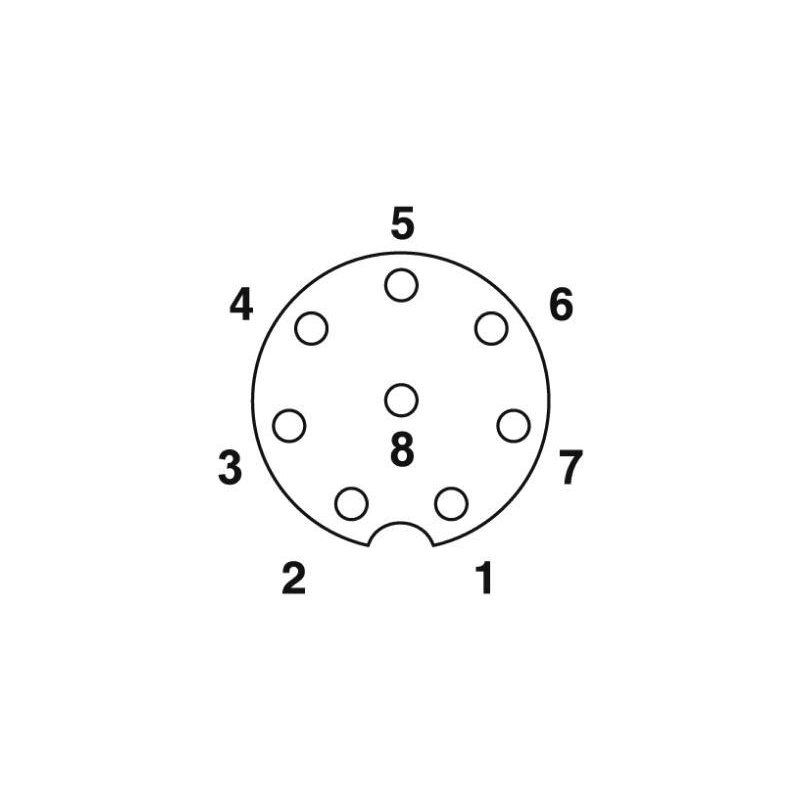

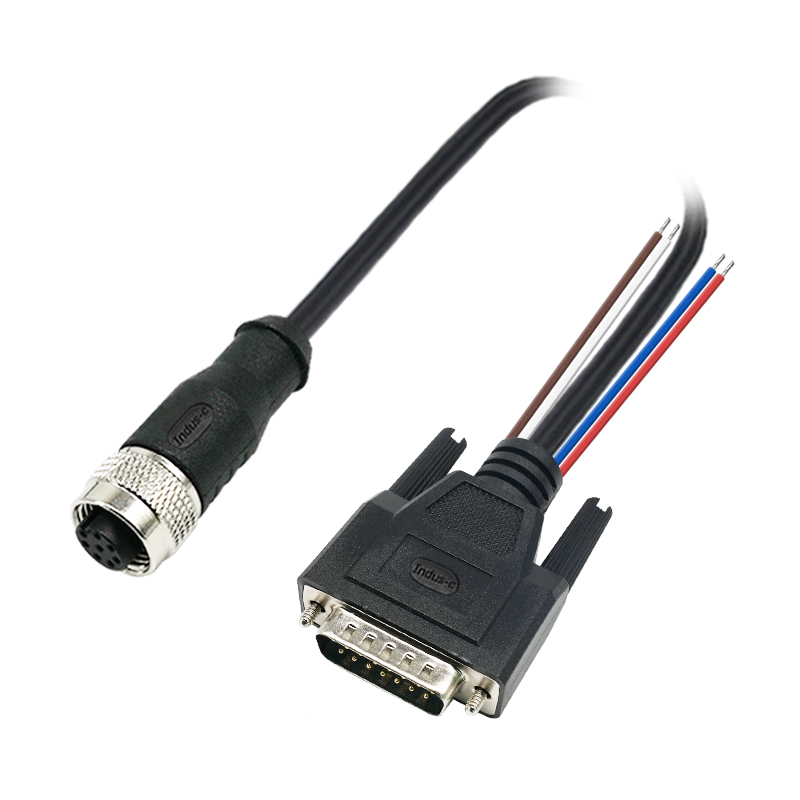

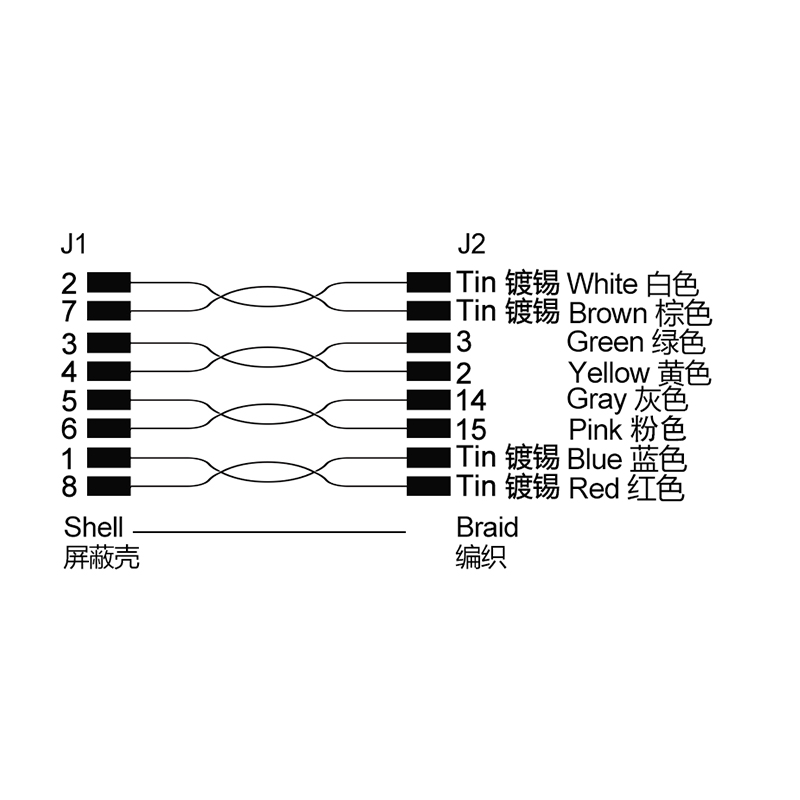

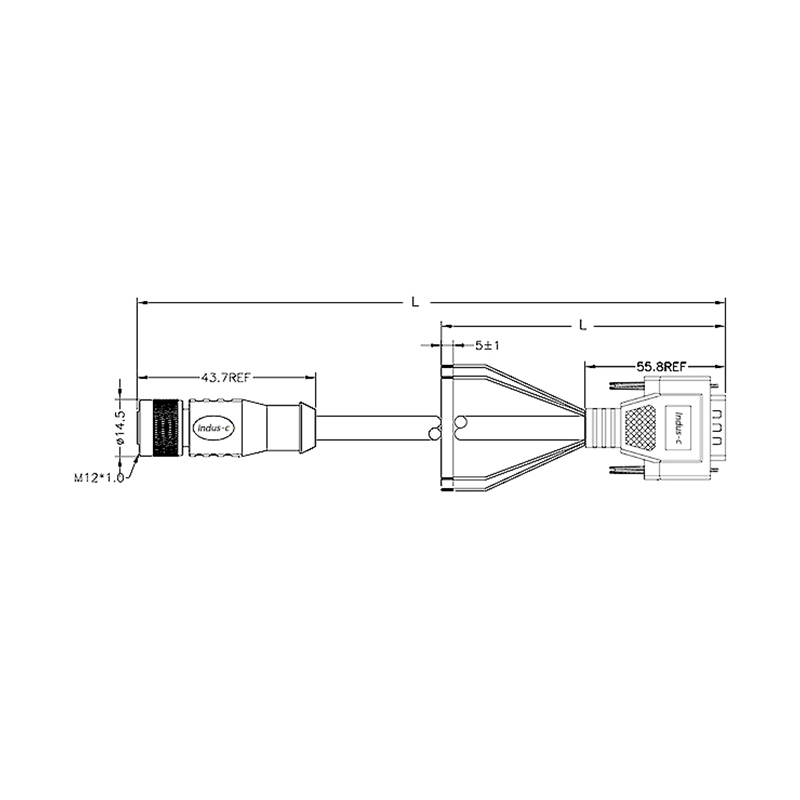

M12 8pins A code female connector with shield to D-sub 15pins male connector
Inquire Online
Download
General information
| Part no | 12DSUBL00016 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-104 |
| Connector locking system | Screw-locking |
| Degree of protection | IP67, IP68 |
| Wire gauge(AWG) | 26AWG-22AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reach |
Electrical parameters
| 8Pin | 30V |
| Rated voltage | 2A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | >100MΩ |
Material
