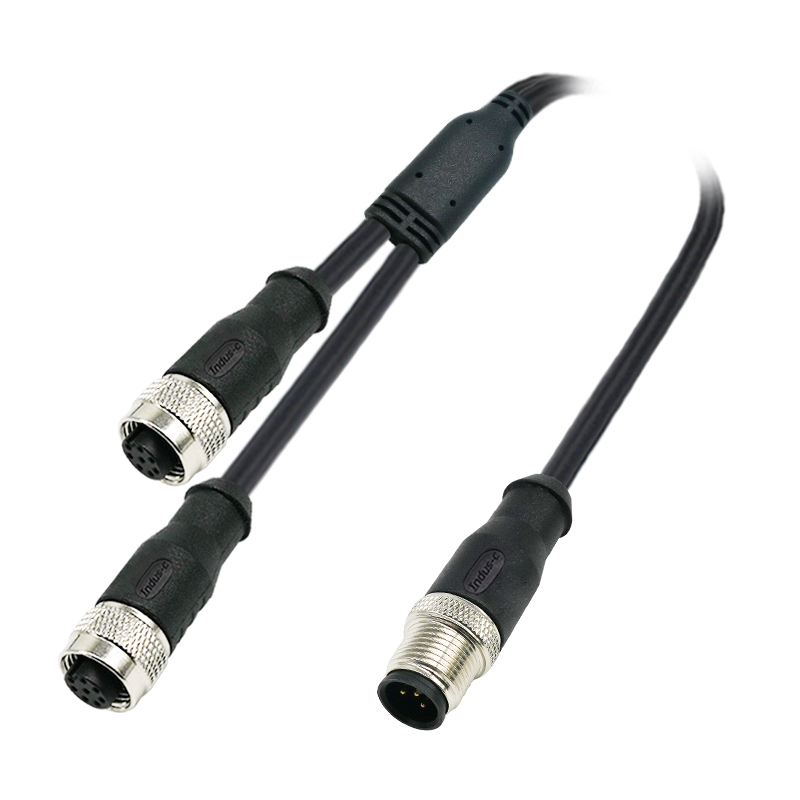

M12 8pins A code male connector to 2+M12 8 pins A code female connector
Inquire Online
Download
General information
| Part no | 12L02145 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-101 |
| Termination | Solder and over-mold |
| Connector locking system | Screw-locking |
| Degree of protection | IP67 |
| Wire gauge(mm²) | 0.14mm²-0.75mm² |
| Wire gauge(AWG) | 26AWG-22AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -40°C~+150°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reach |
Electrical parameters
| 8Pin | 30V |
| Rated voltage | 2A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
Material
| Connector body | TPU |
| Male and Female pin | Brass and Phosphorus copper with gold plated |
| Screw | Brass with nickel plated |
| Shielded shell | Brass with nickel plated |
