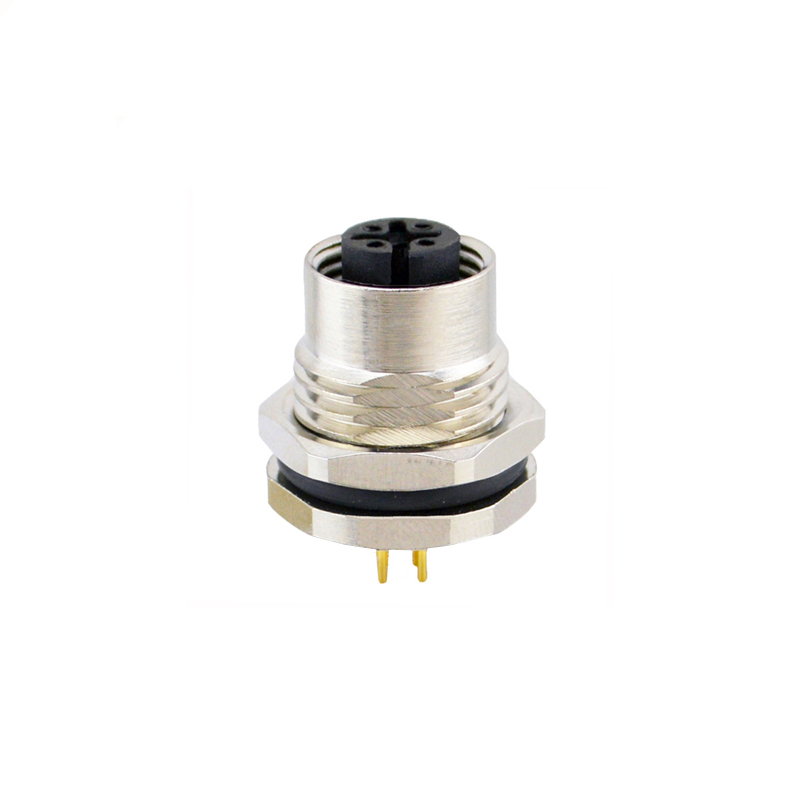

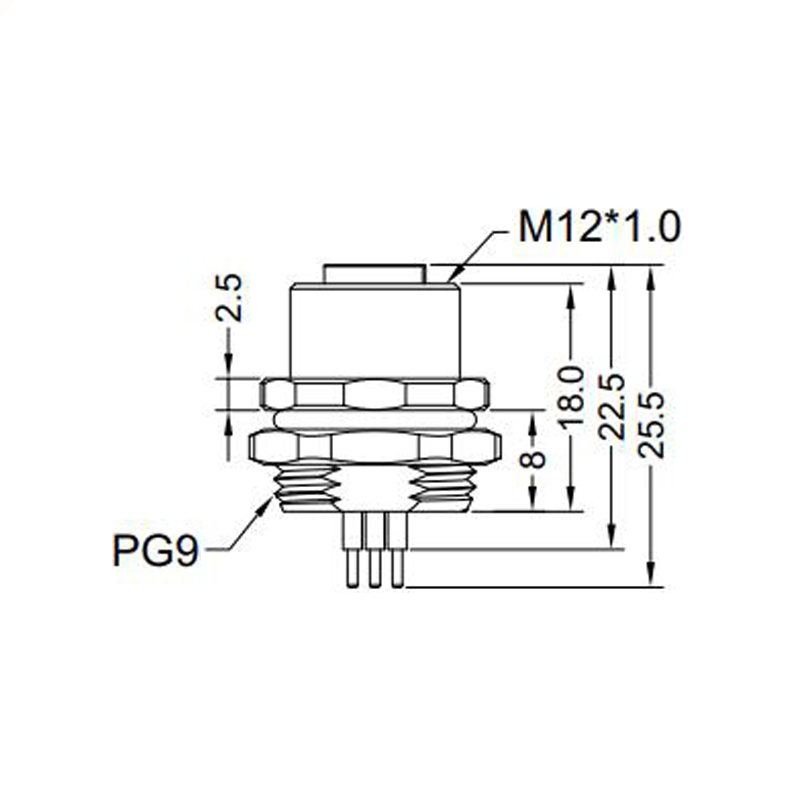

M12 5pins B code female straight rear panel mount connector PG9 thread,unshielded,insert,brass with nickel plated shell
Inquire Online
Download
General information
| Part no |
12B044
|
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-101 |
| Termination | Solder PCB |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reac |
Electrical parameters
| 5Pin | 60V |
| Rated voltage | 4A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
Material
| Connector body | TPU |
| Pin | Phosphorus copper with gold plated |
| Screw | Brass with nickel plated |
| Gasket | Fluorine ring |
Download
| RoHS & REACH Declaration | 12B044 |
NEED MORE INFORMATIONS?
Contact usmating connectors
-
M12 5pins B code male straight front panel mount connector M16 thread,unshielded,insert,brass with ni -

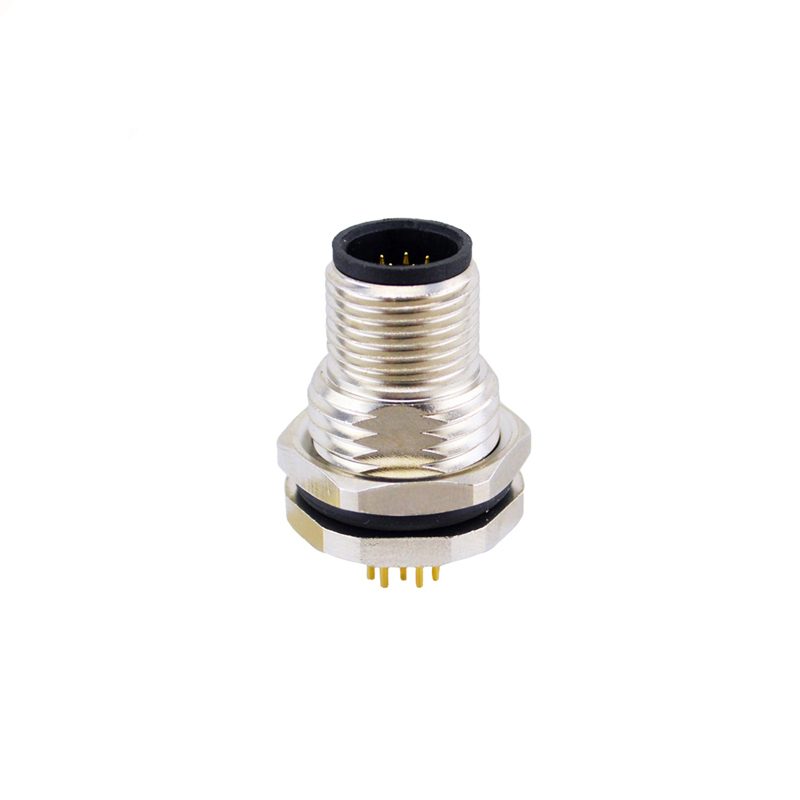

M12 5pins B code male straight rear panel mount connector PG9 thread,unshielded,insert,brass with nicPart no 12B042 Brand Indus-c MOQ 100 Place of origin Shenzhen city, China Delivery time 3 weeks
View More -

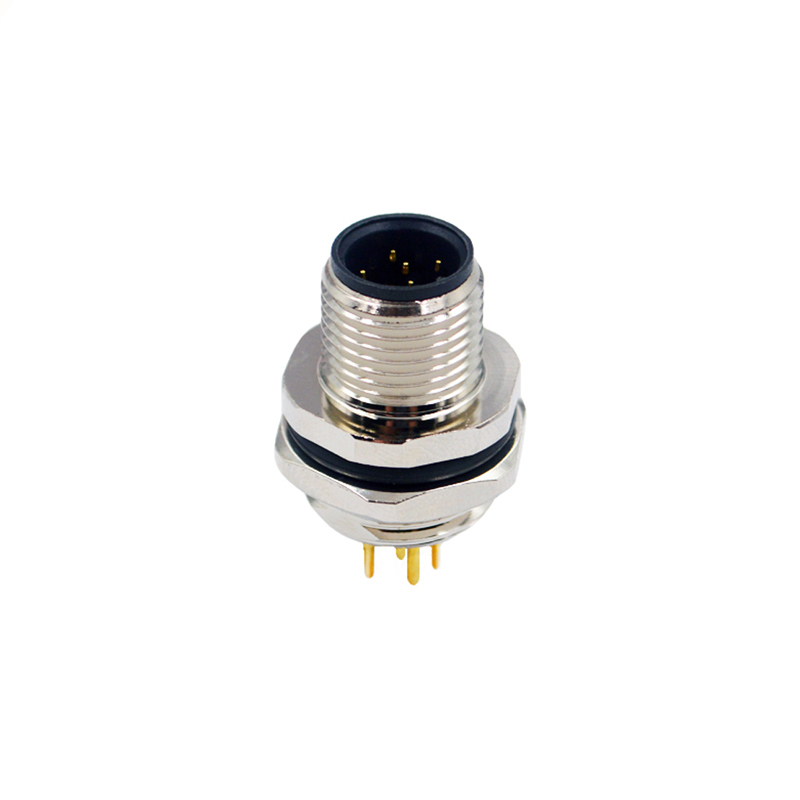

M12 5pins B code male straight front panel mount connector PG9 thread,unshielded,insert,brass with niPart no 12B041 Brand Indus-c MOQ 100 Place of origin Shenzhen city, China Delivery time 3 weeks
View More -

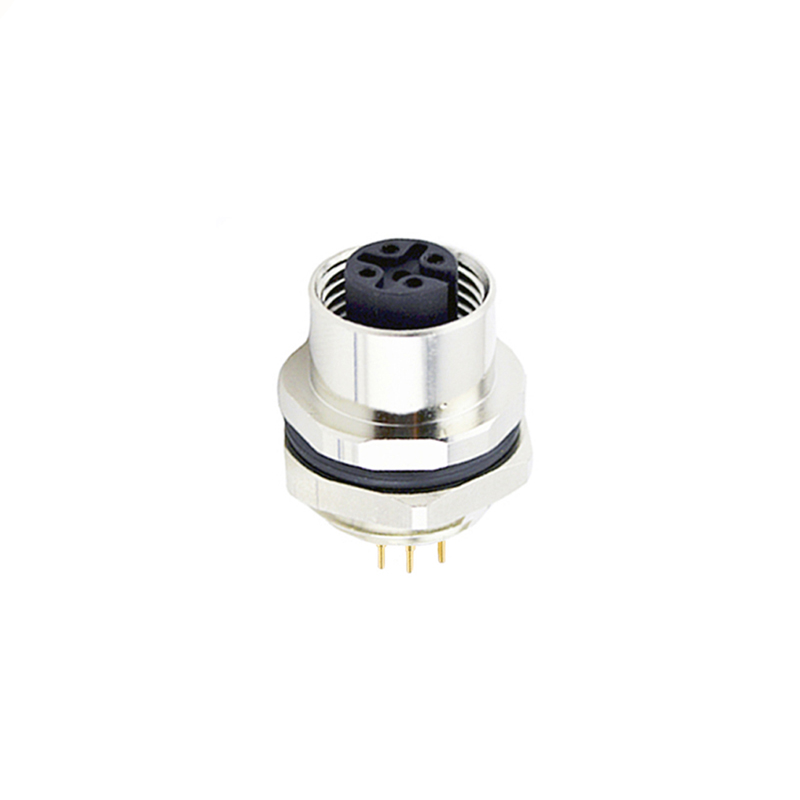

M12 5pins B code female straight rear panel mount connector PG9 thread,unshielded,insert,brass with nPart no 12B044 Brand Indus-c MOQ 100 Place of origin Shenzhen city, China Delivery time 3 weeks
