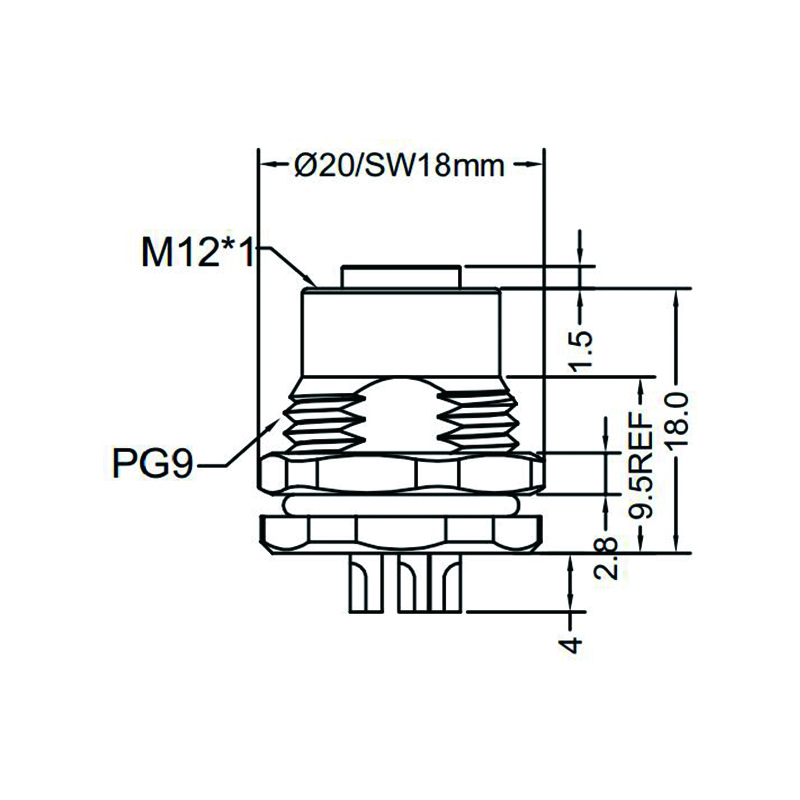

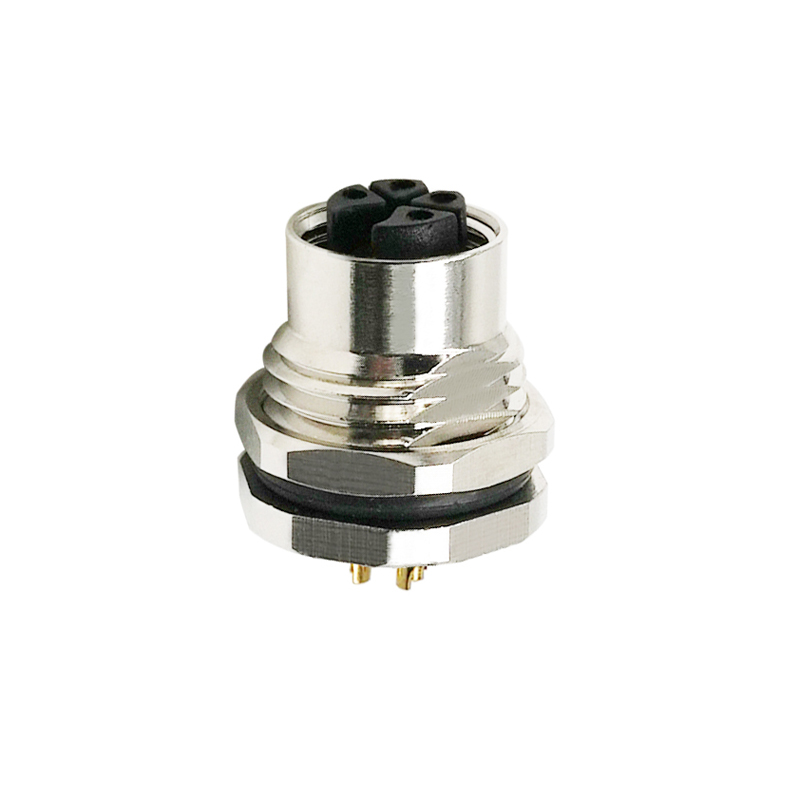

M12 5pins K code female straight front panel mount connector PG9 thread,unshielded,solder,brass with nickel plated shell

Inquire Online
Download

General information

Part no  12H072
Brand

Indus-c

MOQ

100

Place of origin     Shenzhen city, China
Delivery time

3 weeks


General features

Standards IEC 61076-2-101
Termination Solder PCB
Connector locking system Screw
Degree of protection IP67, IP68, IP69K
Mechanical operation >100 mating cycles
Ambient temperature(operation) -25°C~+85°C
Customs tariff number  8538900000
Environmental compliance   RoHS, Reach

Electrical parameters

5Pin 630V
Rated voltage 12A
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ

Material

Connector body TPU
Pin Phosphorus copper with gold plated
Screw Brass with nickel plated
Gasket Fluorine ring

Download

RoHS & REACH Declaration 12H072

NEED MORE INFORMATIONS?

Contact us

mating connectors

Copyright © Indus-c@ Co., Ltd. All Rights Reserved. Sitemap
首页 >
  • M12 5pins K code female straight front panel mount connector PG9 thread,unshielded,solder,brass with nickel plated shell
  • M12 5pins K code female straight front panel mount connector PG9 thread,unshielded,solder,brass with nickel plated shell
  • M12 5pins K code female straight front panel mount connector PG9 thread,unshielded,solder,brass with nickel plated shell
  • M12 5pins K code female straight front panel mount connector PG9 thread,unshielded,solder,brass with nickel plated shell
  • M12 5pins K code female straight front panel mount connector PG9 thread,unshielded,solder,brass with nickel plated shell
  • M12 5pins K code female straight front panel mount connector PG9 thread,unshielded,solder,brass with nickel plated shell

M12,5针,K型母头直头前锁面板焊线式PG9螺纹,不带屏蔽,黄铜镀镍铜壳

金达思K型M12面板式连接器分为前锁安装和后锁安装。然而面板式连接器又分为板端、焊线式和带线。请联系我们选择正确的产品。
询价
下载

常规信息

料号  12H072
品牌

Indus-c

最小订单量

100

原产地     中国,深圳市
交货期

3周


产品特点

标准 IEC 61076-2-101
焊接方式 焊接
防护等级 IP67, IP68, IP69K
线规(平方数) 0.14mm²-0.75mm²
线号(平方数) 26AWG-18AWG
插拔次数 >100次
操作温度 -25°C~+85°C
环境符合标准 RoHs, Reach

参数

额定电压 630V
额定电流  12A
接触电阻 ≤5mΩ
绝缘电阻 ≥100MΩ

原料

胶芯 TPU
端子 黄铜镀金
螺丝 黄铜镀镍
胶圈 氟胶圈
