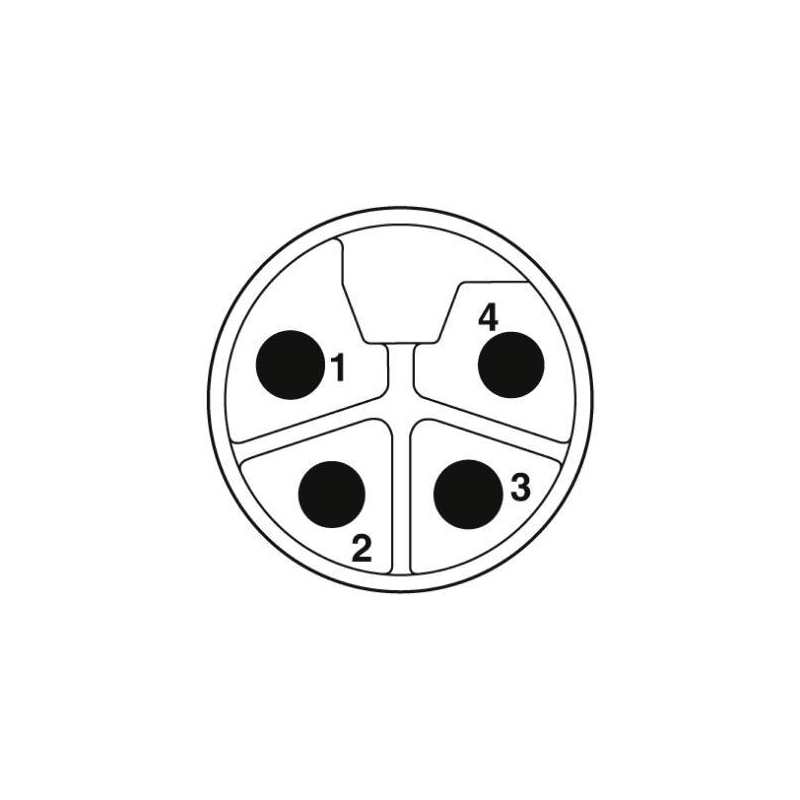

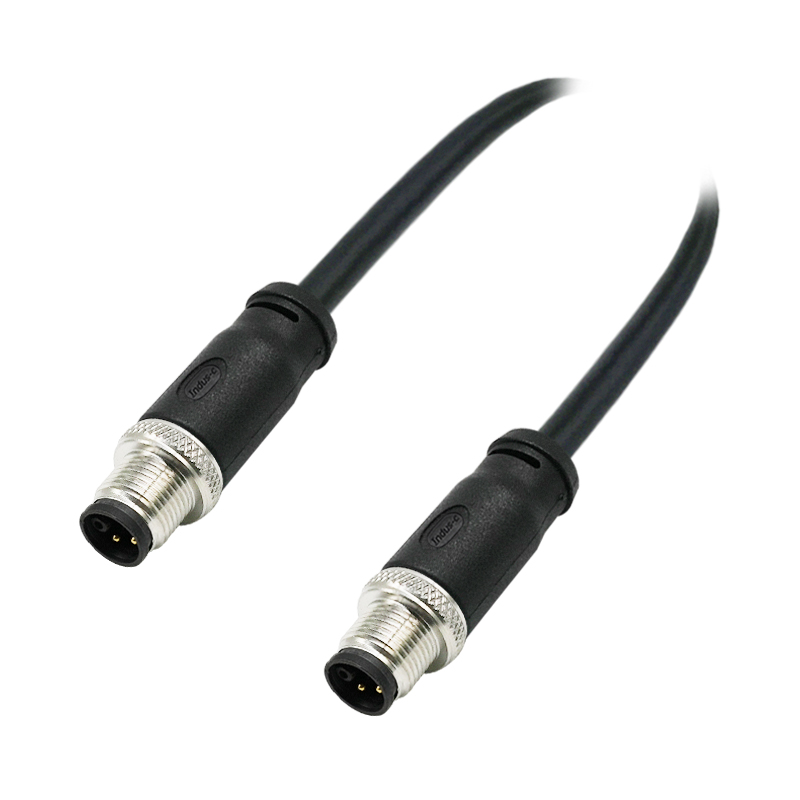

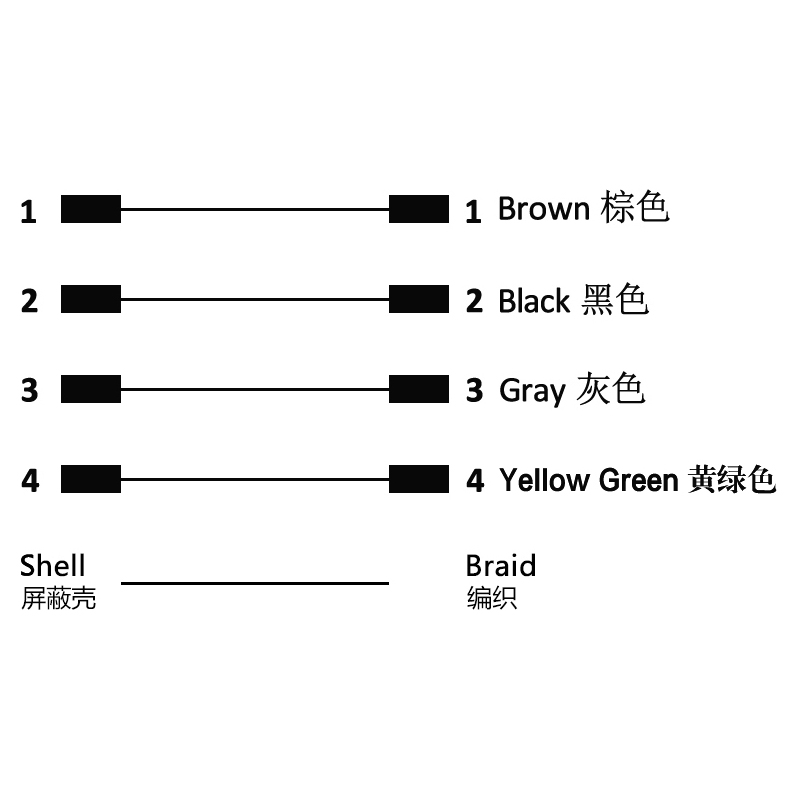

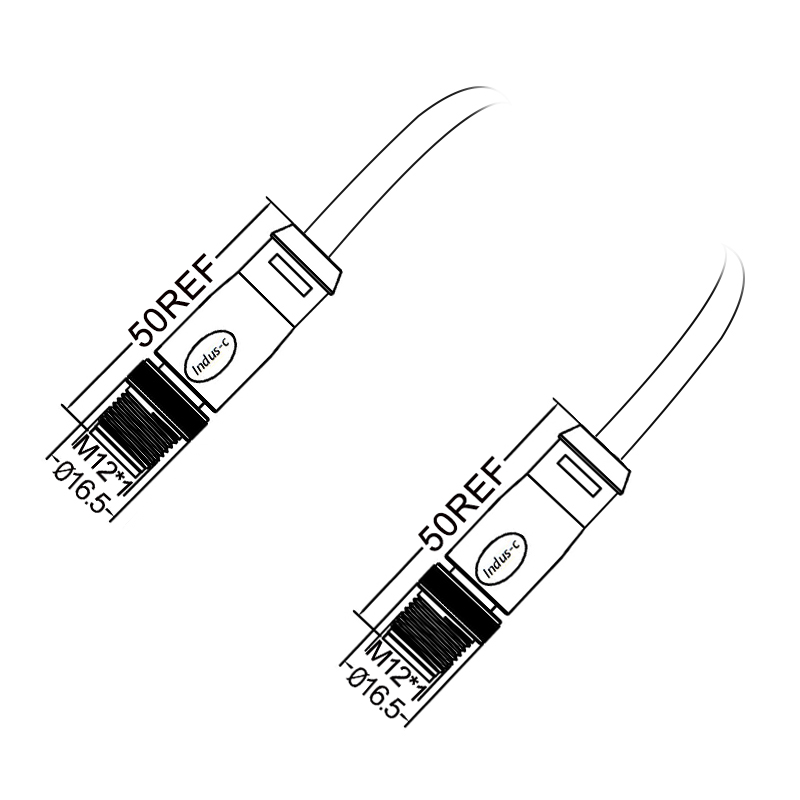

M12 4pins L code male to male straight molded cable,shielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw

Inquire Online
Download

General information

Part no  12L01570
Brand

Indus-c

MOQ

100

Place of origin     Shenzhen city, China
Delivery time

3 weeks


General features

Standards IEC 61076-2-101
Termination Solder and over-mold
Connector locking system Screw
Degree of protection IP67, IP68, IP69K
Wire gauge(mm²) 0.14mm²-0.75mm²
Wire gauge(AWG) 26AWG-18AWG
Mechanical operation >100 mating cycles
Ambient temperature(operation) -40°C~+105°C
Customs tariff number  8518900001
Environmental compliance   RoHS, Reach

Electrical parameters

4Pin 630V
Rated voltage 12A
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ

Material

Connector body TPU
Pin Brass with gold plated
Screw Brass with nickel plated

Download

RoHS & REACH Declaration 12L01570
