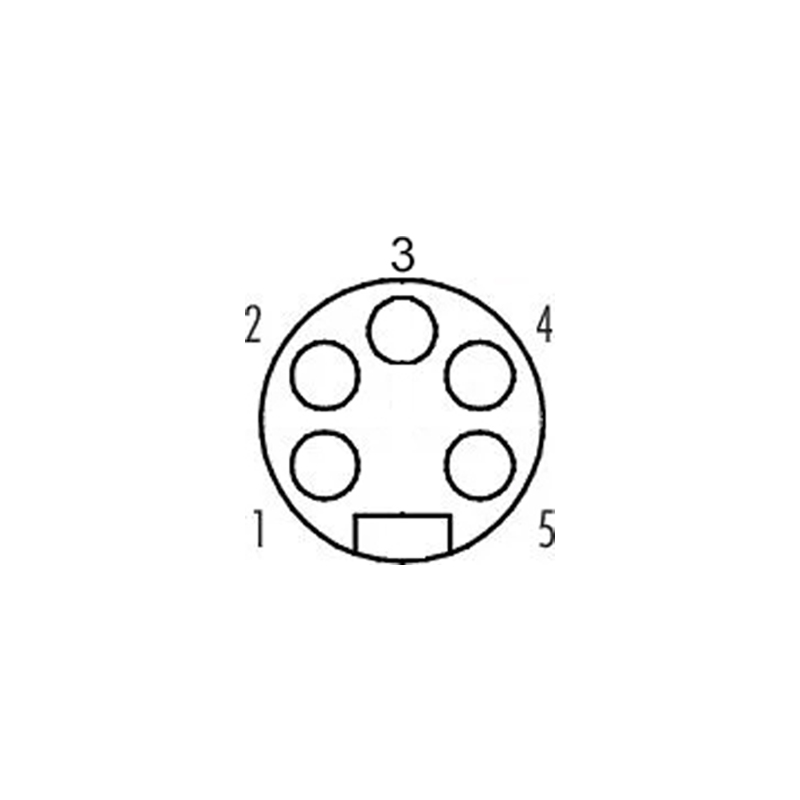

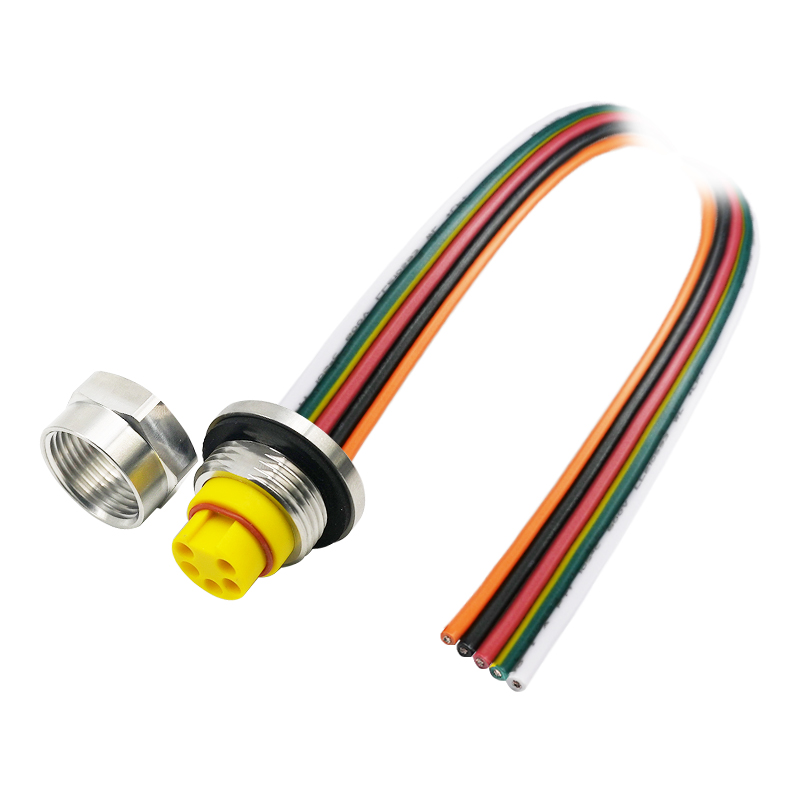

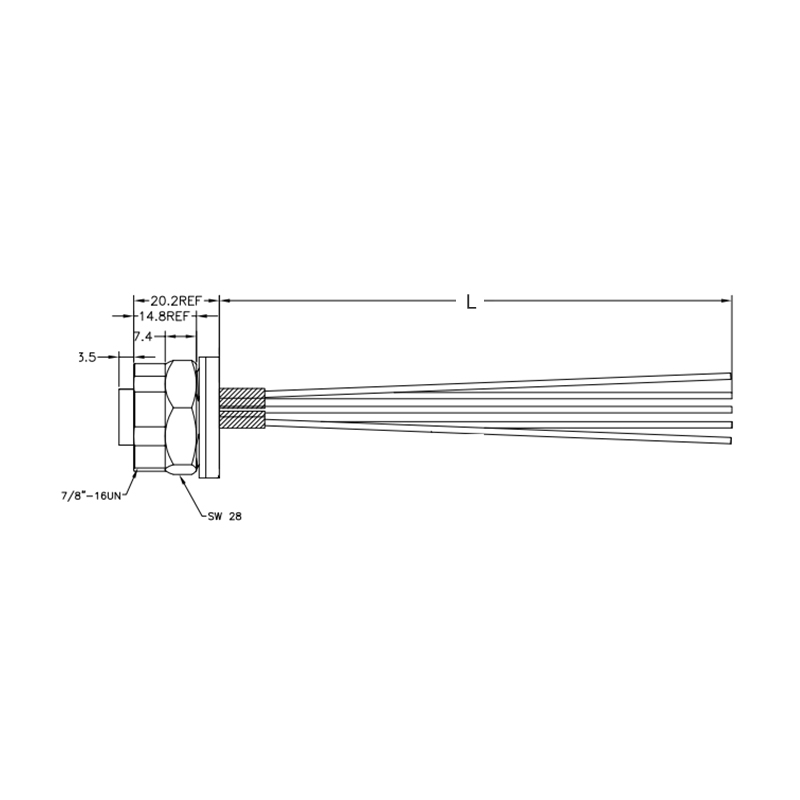

7/8"-16un 5pins female straight front panel mount connector,single wire
Inquire Online
Download
General information
| Part no | 78D035 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-104 |
| Termination | With single wires |
| Connector locking system | Screw-locking |
| Degree of protection | IP67 |
| Wire gauge(mm²) | 0.14mm²-0.34mm² |
| Wire gauge(AWG) | 26AWG-22AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -40°C~+105°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reach |
Electrical parameters
| 5Pin | 300V |
| Rated voltage | 6.0A |
| Contact resistance | ≤10mΩ |
| Insulation resistance | >100MΩ |
Material
| Connector body | TPU |
| Pin | Phosphorus with gold plated |
