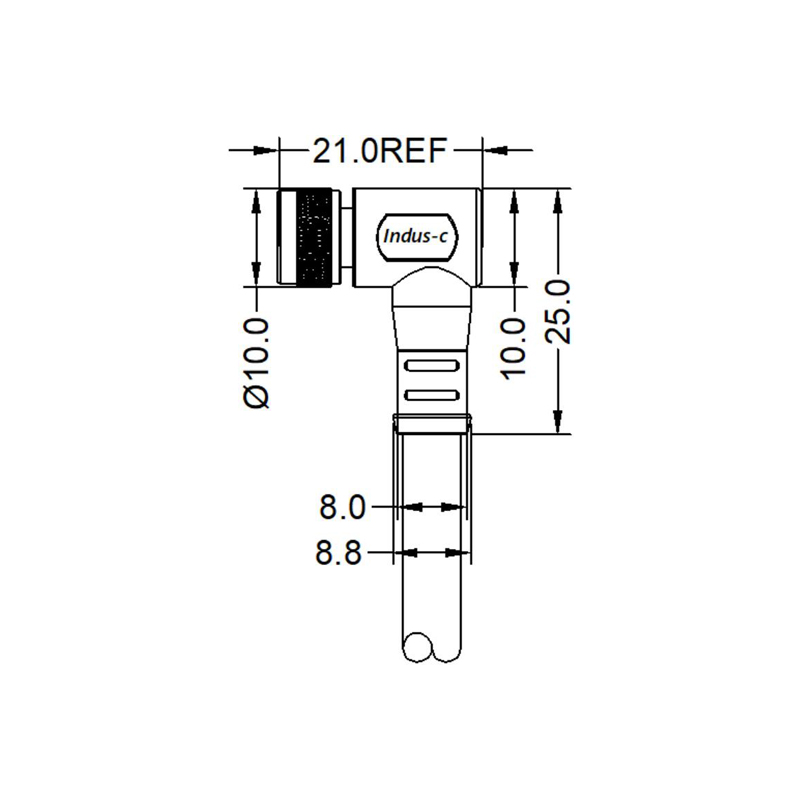

M8 3pins A code female right angle molded cable, shielded, PUR, -40°C~+105°C, 24AWG 0.25mm²

M8 cable assembly according to IEC 61076-2-104 has A code 3pins, 4pins, 6pins, 8pins and B code 5pins. The highest waterproof grade is IP69K. Any length is available. INDUS-CONNECTOR always provide customized design to cover the whole requirement.
Inquire Online
Download

General information

Part no
8L00108
Brand

Indus-c

MOQ

100

Place of origin     Shenzhen city, China
Delivery time

3 weeks


General features

Standards IEC 61076-2-104
Termination Solder and over-mold
Connector locking system Screw
Degree of protection IP67, IP68, IP69K
Wire gauge(mm²) 0.14mm²-0.34mm²
Wire gauge(AWG) 26AWG-22AWG
Mechanical operation >100 mating cycles
Ambient temperature(operation) -40°C~+105°C
Customs tariff number  8518900001
Environmental compliance   RoHS, Reac

Electrical parameters

3Pin 60V
Rated voltage 3A
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ

Material

Connector body TPU
Pin Phosphorus copper with gold plated
Screw Brass with nickel plated
Gasket Fluorine ring
Shielded sheelll Brass with nickel plated

NEED MORE INFORMATIONS?

Contact us

mating connectors
