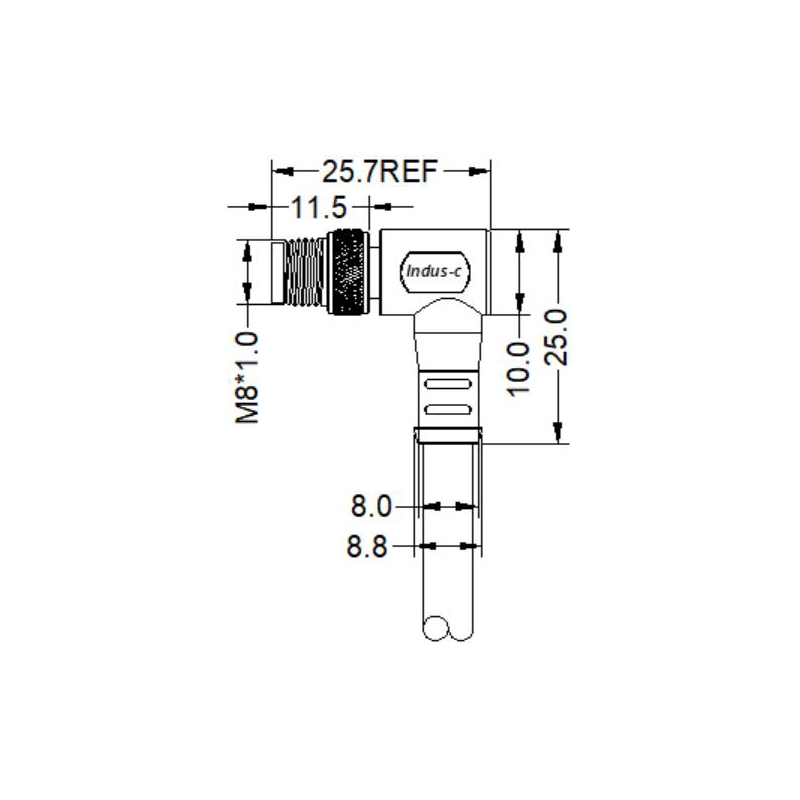

M8 6pins A code male right angle molded cable, unshielded, PUR, -40°C~+105°C, 26AWG 0.14mm²

M8 cable assembly according to IEC 61076-2-104 has A code 3pins, 4pins, 6pins, 8pins and B code 5pins. The highest waterproof grade is IP69K. Any length is available. INDUS-CONNECTOR always provide customized design to cover the whole requirement.
Inquire Online
Download

General information

Part no
8L00067
Brand

Indus-c

MOQ

100

Place of origin     Shenzhen city, China
Delivery time

3 weeks


General features

Standards IEC 61076-2-104
Termination Solder and over-mold
Connector locking system Screw
Degree of protection IP67, IP68, IP69K
Wire gauge(mm²) 0.14mm²
Wire gauge(AWG) 26AWG
Mechanical operation >100 mating cycles
Ambient temperature(operation)  -40°C~+105°C
Customs tariff number  8518900001
Environmental compliance   RoHS, Reac

Electrical parameters

6Pin 30V
Rated voltage 1A
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ

Material

Connector body TPU
Pin Brass with gold plated
Screw Brass with nickel plated

NEED MORE INFORMATIONS?

Contact us

mating connectors
