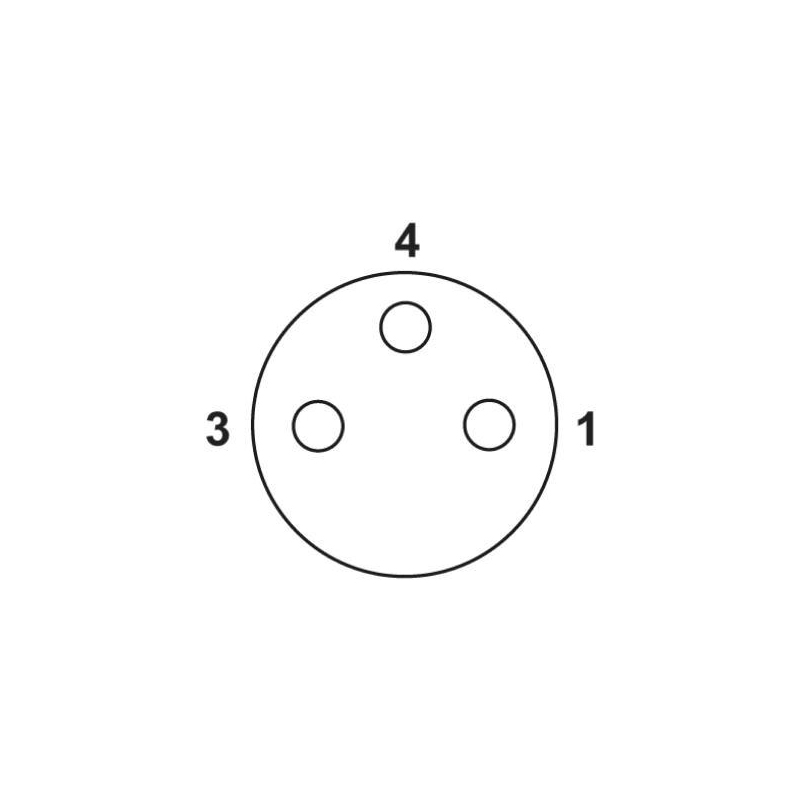

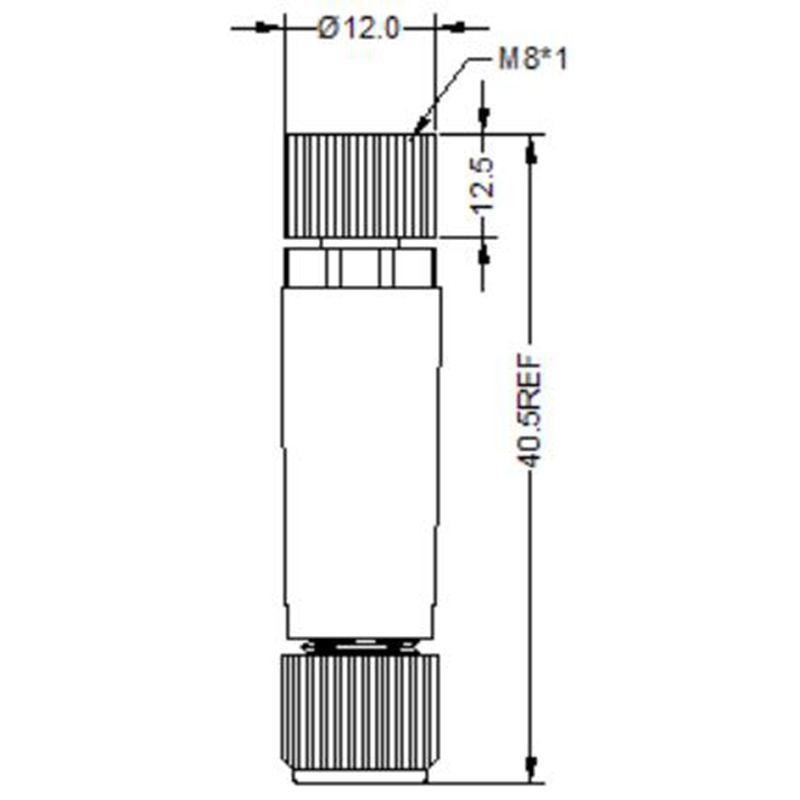

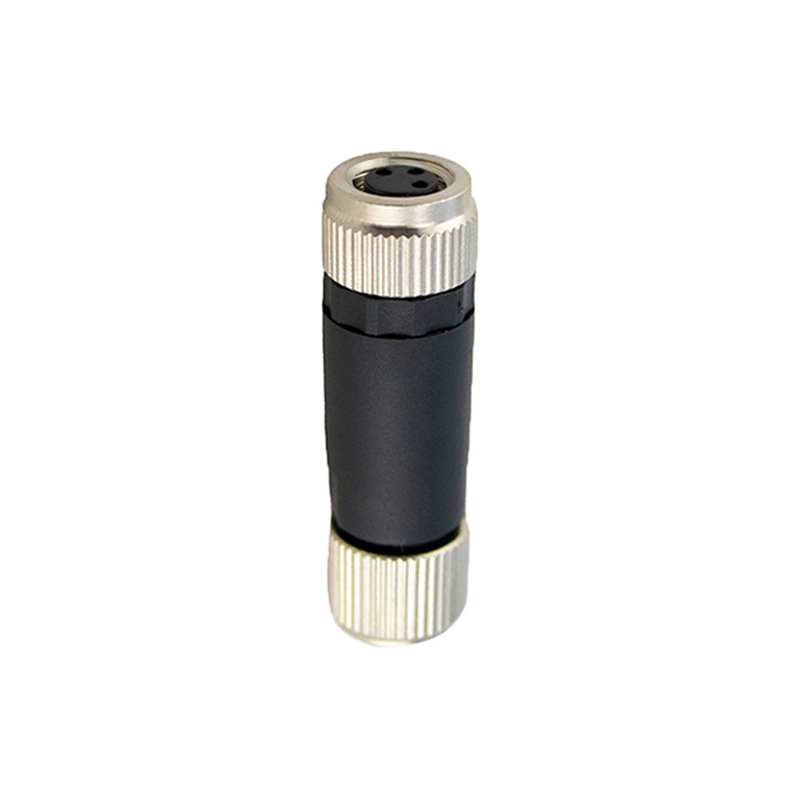

.jpg "M8 3pins A code female straight plastic assembly connector,unshielded,suitable cable outer diameter 3.5mm-5.0mm")
.jpg "M8 3pins A code female straight plastic assembly connector,unshielded,suitable cable outer diameter 3.5mm-5.0mm")
.jpg "M8 3pins A code female straight plastic assembly connector,unshielded,suitable cable outer diameter 3.5mm-5.0mm")
.jpg "M8 3pins A code female straight plastic assembly connector,unshielded,suitable cable outer diameter 3.5mm-5.0mm")
| Part no | 8ZU02 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
| Standards | IEC 61076-2-104 |

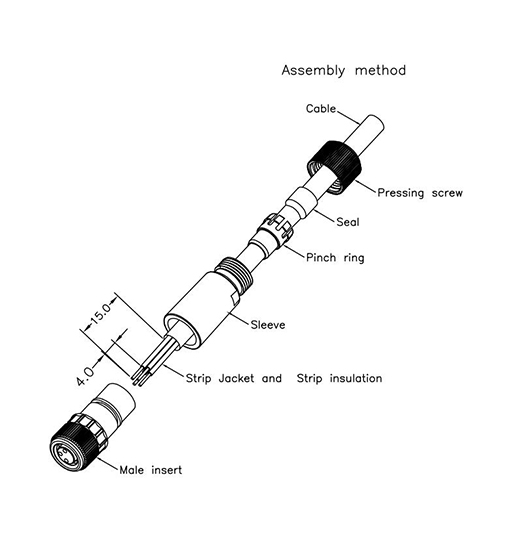

| Termination | Screw clamp |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm²-0.34mm² |
| Wire gauge(AWG) | 26AWG-22AWG |
| Suitable cable outer diameter | 3.5mm-5.0mm |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reac |
| 3Pin | 60V |
| Rated voltage | 3A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector body | TPU |
| Pin |
Phosphorus copper with gold plated
|
| Screw | Brass with nickel plated |
| Gasket | Fluorine ring |
| RoHS & REACH Declaration | 8ZU02 |
M8 connectors for assembly provide the best connection technology for every application where standard cable assemblies with over-molded connectors are not an option. Indus-connector has plastic version both straight type and right angle typ
View More
M8 connectors for assembly provide the best connection technology for every application where standard cable assemblies with over-molded connectors are not an option. Indus-connector has plastic version both straight type and right angle typ
View More
M8 connectors for assembly provide the best connection technology for every application where standard cable assemblies with over-molded connectors are not an option. Indus-connector has plastic version both straight type and right angle typ
View More
M8 connectors for assembly provide the best connection technology for every application where standard cable assemblies with over-molded connectors are not an option. Indus-connector has plastic version both straight type and right angle typ
View More
+86 - 138 0253 0727
2 Floors, The 4th And The 5th, The 8th Bldg., Lihao Industry Zone, Ainan Rd., No.78, Baolong St., Longgang Dist., Shenzhen 518116, China
| 料号 | 8ZU02 |
| 品牌 |
Indus-c |
| 最小订单量 |
100 |
| 原产地 | 中国，深圳市 |
| 交货期 |
3周 |
| 标准 | IEC 61076-2-105 |
| 焊接方式 | 螺锁 |
| 锁紧方式 | 螺锁 |
| 防护等级 | IP67, IP68, IP69K |
| 线规(平方数) | 0.14mm² |
| 线号(平方数) | 26AWG |
| 插拔次数 | >100次 |
| 操作温度 | -10°C~+80°C |
| 海关编码 | 8518900001 |
| 环境符合标准 | RoHS, Reac |
| 3针 | 60V |
| 额定电流 | 3A |
| 接触电阻 | ≤5mΩ |
| 绝缘电阻 | ≥100MΩ |
| 成型 | TPU |
| 端子 |
磷铜镀金
|
| 螺丝 | 黄铜镀镍 |
| 胶圈 | 氟胶圈 |
M8装配式连接器提供了便捷的连接技术，适用于任何不能使用成型式连接线的场合。金达思提供塑胶材质的直头和弯头3芯和4芯连接器。更多的是金达思也提供屏蔽式连接器。
