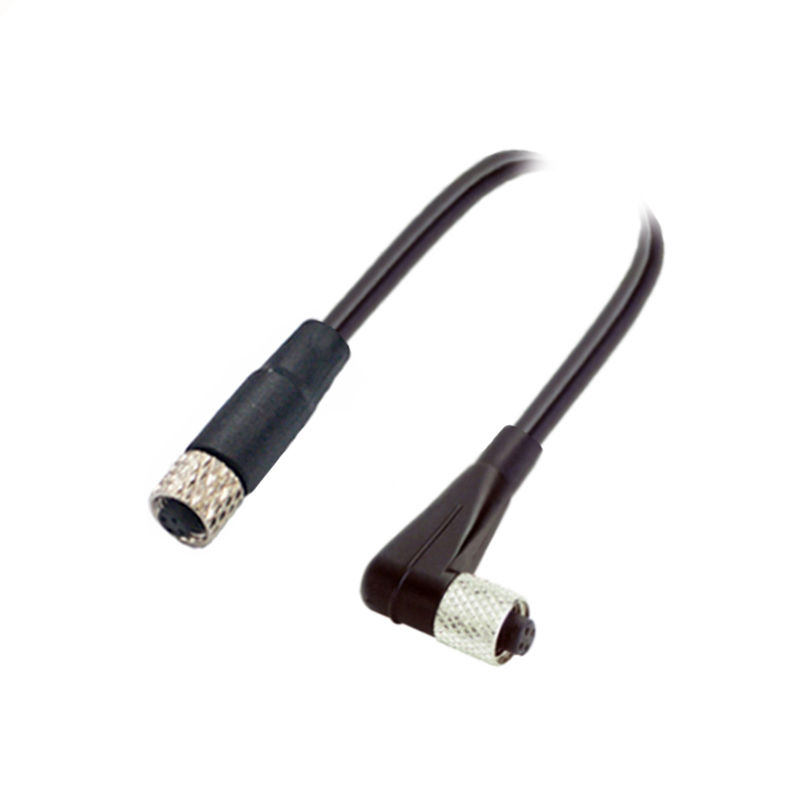

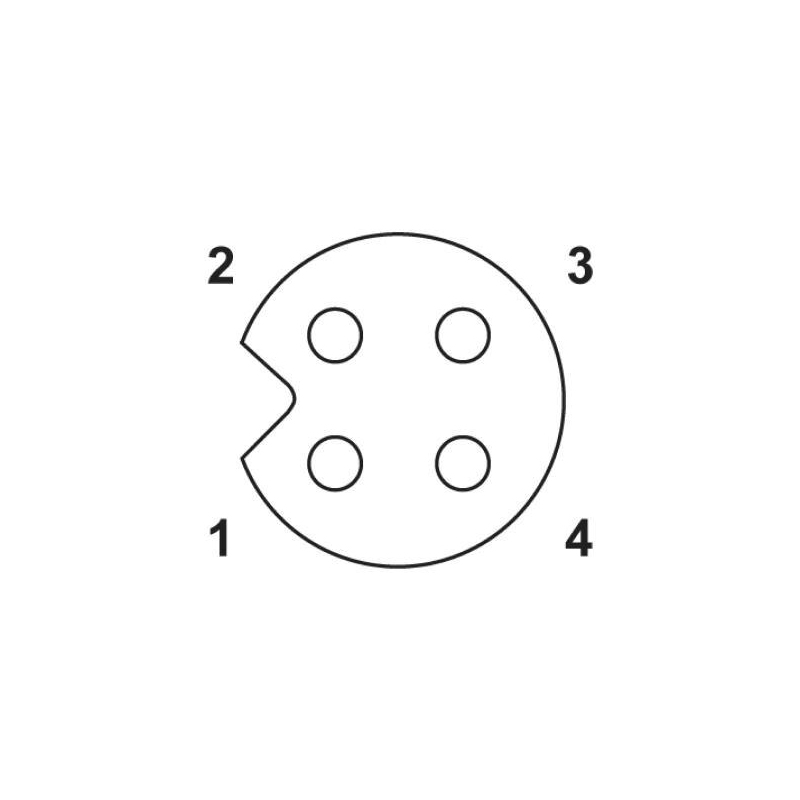

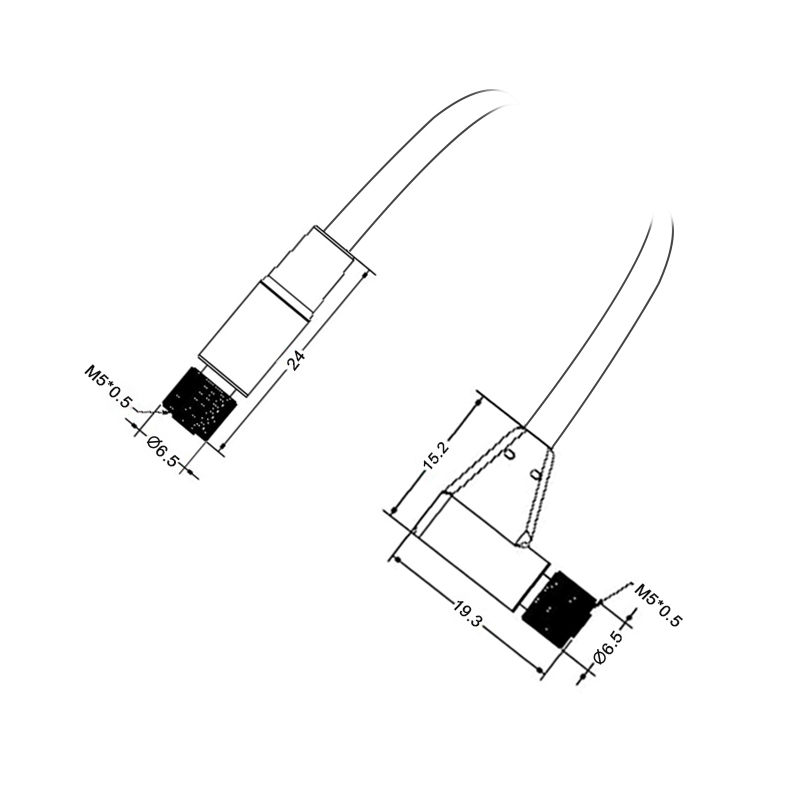

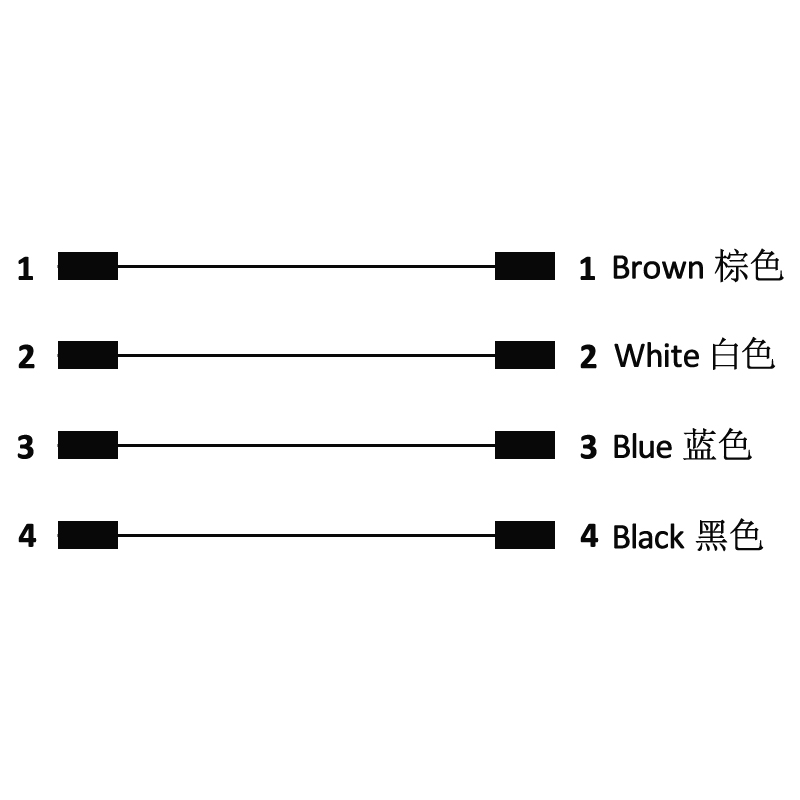

M5 4pins A code female straight to female right angle molded cable,unshielded,PUR,-40°C~+105°C,26AWG 0.14mm²,brass with nickel plated screw
Inquire Online
Download
General information
| Part no | 5L116 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-105 |
| Termination | Solder and over-mold |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm² |
| Wire gauge(AWG) | 26AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -10°C~+80°C |
| Customs tariff number | 8518900001 |
| Environmental compliance | RoHS, Reach |
Electrical parameters
| 4Pin | 60V |
| Rated voltage | 1A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
Material
| Connector body | TPU |
| Pin | Phosphorus copper with gold plated |
| Screw | Brass with nickel plated |
Download
| RoHS & REACH Declaration | 5L116 |
