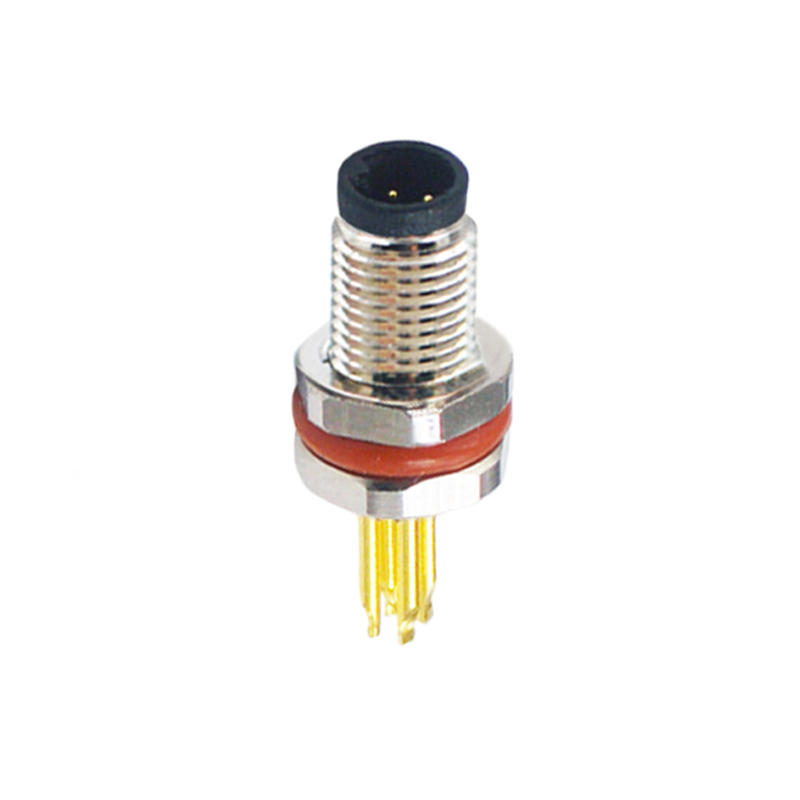

M5 4pins A code male straight rear panel mount connector,unshielded,solder,brass with nickel plated shell

M5 connector series are secure and waterproof with a waterproof IP67, IP68, IP69K rating. A great choice for sensor applications and wet environments, these connectors are gold plated, with 3 and 4 pins, and in cable mount, or panel mount configurations. Protection class is IP67 when mated. 3pins and 4pins gold-plated brass contacts with a rated current of 1 A at 60 V can be selected.
Inquire Online
Download

General information

Part no  5H006
Brand

Indus-c

MOQ

100

Place of origin     Shenzhen city, China
Delivery time

3 weeks


General features

Standards IEC 61076-2-105
Termination Solder wires
Connector locking system Screw
Degree of protection IP67, IP68, IP69K
Mechanical operation >100 mating cycles
Ambient temperature(operation) -25°C~+85°C
Customs tariff number  8538900000
Environmental compliance   RoHS, Reac

Electrical parameters

4Pin 60V
Rated voltage 1A
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ

Material

Connector body TPU
Pin Brass with gold plated
Nut and shell Brass with nickel plated
Gasket Fluorine ring
Black glue Epoxy resin

Download

RoHS & REACH Declaration 5H006

NEED MORE INFORMATIONS?

Contact us

mating connectors

Copyright © Indus-c@ Co., Ltd. All Rights Reserved. Sitemap
首页 >
  • M5 4pins A code male straight rear panel mount connector,unshielded,solder,brass with nickel plated shell
  • M5 4pins A code male straight rear panel mount connector,unshielded,solder,brass with nickel plated shell
  • M5 4pins A code male straight rear panel mount connector,unshielded,solder,brass with nickel plated shell
  • M5 4pins A code male straight rear panel mount connector,unshielded,solder,brass with nickel plated shell
  • M5 4pins A code male straight rear panel mount connector,unshielded,solder,brass with nickel plated shell
  • M5 4pins A code male straight rear panel mount connector,unshielded,solder,brass with nickel plated shell

M5,3针,A型公头直头后锁面板焊线式,不带屏蔽,黄铜镀镍铜壳

M5连接器可达IP67、IP68、IP69K防护等级,是传感器应用和潮湿环境应用的一个很好的选择。面板安装式连接器有3芯和4芯。螺丝锁紧可以达到IP67防护等级。可选择3芯和4芯,且电流都为1A、电压60V。
询价
下载

常规信息

料号  5H006
品牌

Indus-c

最小订单量

100

原产地     中国,深圳市
交货期

3周


产品特点

标准 IEC 61076-2-105
焊接方式 焊线
锁紧方式 螺锁
防护等级 IP67, IP68, IP69K
插拔次数 >100次
操作温度 -25°C~+85°C
海关编码 8518900000
环境符合标准 RoHS, Reac

参数

4针 60V
额定电流  1A
接触电阻 ≤5mΩ
绝缘电阻 ≥100MΩ

原料

胶芯 TPU
端子 黄铜镀金
螺母和铜壳 黄铜镀镍
胶圈 氟胶圈
黑色胶水 环氧树脂
