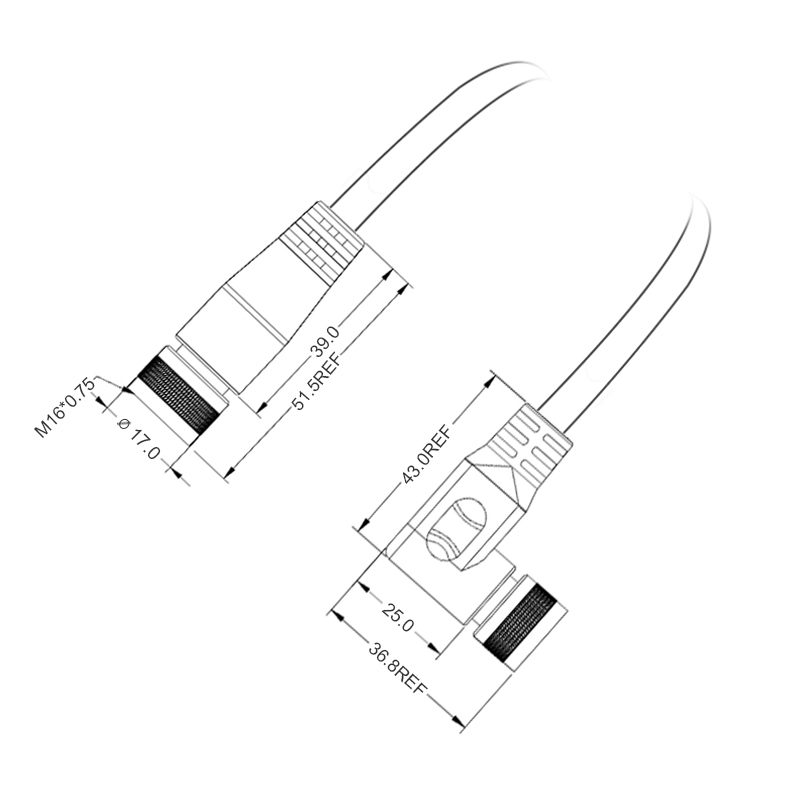

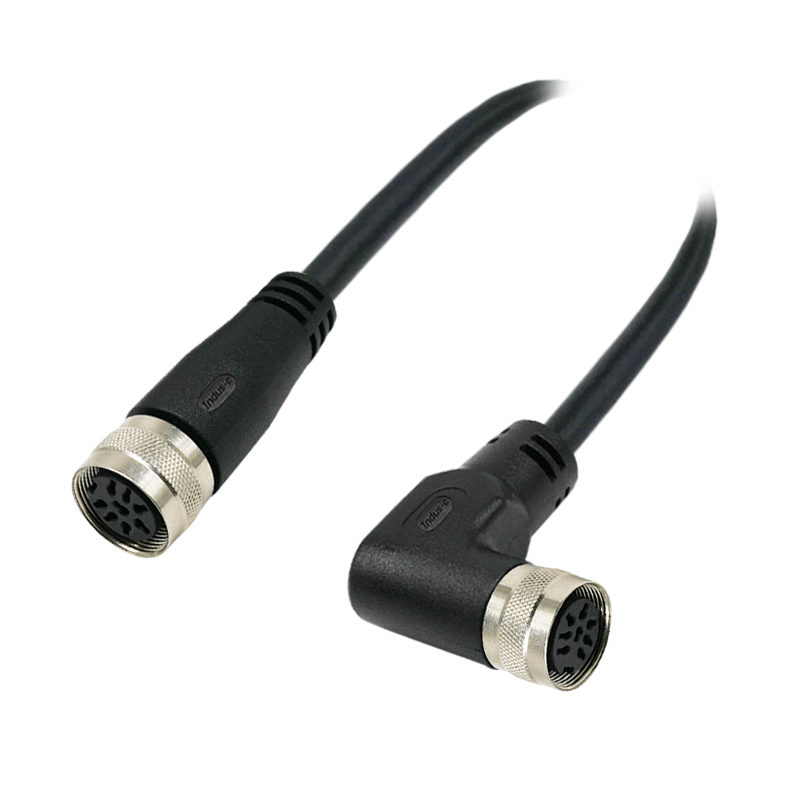

M16 8pins A code female straight to female right angle molded cable,shielded,PUR,-40°C~+105°C,18AWG 0.75mm²,brass with nickel plated screw

Inquire Online
Download

General information

Part no  16L00583
Brand

Indus-c

MOQ

100

Place of origin     Shenzhen city, China
Delivery time

3 weeks


General features

Standards DIN EN 61076-2-106
Termination Solder and over-mold
Connector locking system Screw
Degree of protection IP67
Wire gauge(mm²) 0.14mm²-0.75mm²
Wire gauge(AWG) 26AWG-18AWG
Mechanical operation >100 mating cycles
Ambient temperature(operation) -25°C~+85°C
Customs tariff number  8538900000
Environmental compliance   RoHS, Reach

Electrical parameters

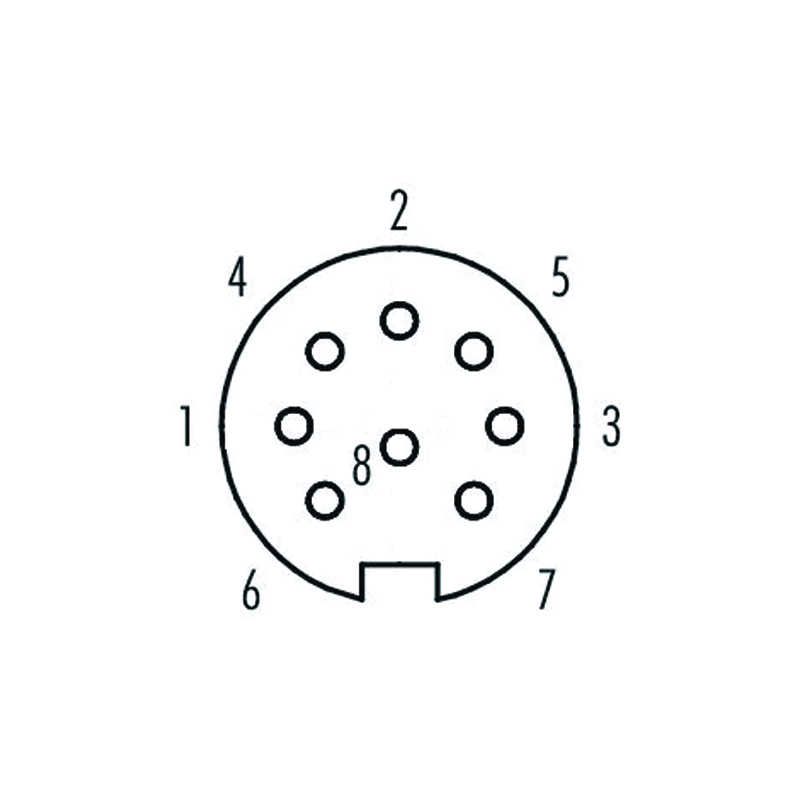

8Pin 32V
Rated voltage 5.0A
Contact resistance 1010 Ω
Insulation resistance ≥100MΩ

Material

Connector body TPU
Pin Phosphorus copper with gold plated
Screw Brass with nickel plated

Download

NEED MORE INFORMATIONS?

Contact us

mating connectors
