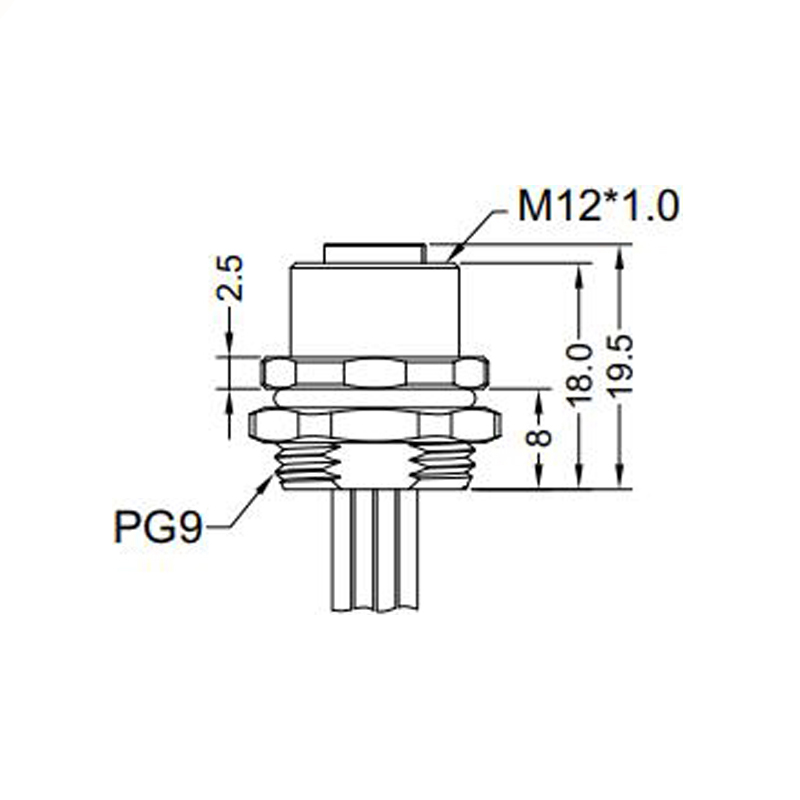

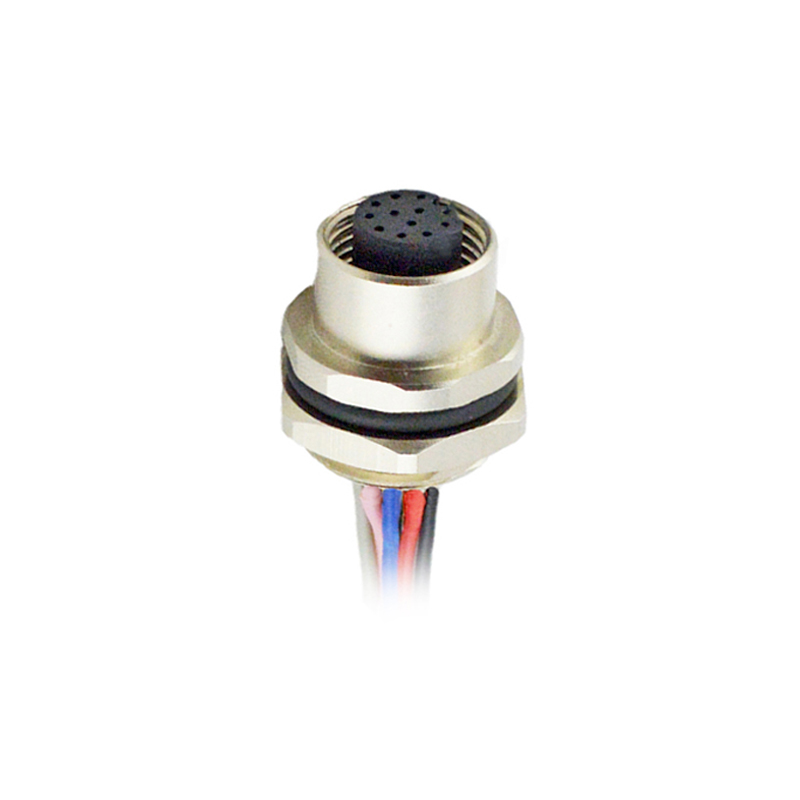

.jpg "M12 12pins A code female straight rear panel mount connector PG9 thread,unshielded,single wires,brass with nickel plated shell")
.jpg "M12 12pins A code female straight rear panel mount connector PG9 thread,unshielded,single wires,brass with nickel plated shell")
.jpg "M12 12pins A code female straight rear panel mount connector PG9 thread,unshielded,single wires,brass with nickel plated shell")
.jpg "M12 12pins A code female straight rear panel mount connector PG9 thread,unshielded,single wires,brass with nickel plated shell")
| Part no |
12D020
|
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
| Standards | IEC 61076-2-101 |
| Termination | Solder |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm²-0.75mm² |
| Wire gauge(AWG) | 26AWG-18AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reac |
| 12Pin | 30V |
| Rated voltage | 1.5A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector body | TPU |
| Pin | Phosphorus copper with gold plated |
| Screw | Brass with nickel plated |
| RoHS & REACH Declaration | 12D020 |
INDUS-CONNECTOR M12 PCB connectors are front and rear bulkhead mounted M8 connectors designed for easy handling on the PCB and compatibility with wave soldering processes. M12 PCB connectors include an incorporated wire clip with an integrat
View More
INDUS-CONNECTOR M12 PCB connectors are front and rear bulkhead mounted M8 connectors designed for easy handling on the PCB and compatibility with wave soldering processes. M12 PCB connectors include an incorporated wire clip with an integrat
View More
INDUS-CONNECTOR M12 PCB connectors are front and rear bulkhead mounted M8 connectors designed for easy handling on the PCB and compatibility with wave soldering processes. M12 PCB connectors include an incorporated wire clip with an integrat
View More
INDUS-CONNECTOR M12 PCB connectors are front and rear bulkhead mounted M8 connectors designed for easy handling on the PCB and compatibility with wave soldering processes. M12 PCB connectors include an incorporated wire clip with an integrat
View More
+86 - 138 0253 0727
2 Floors, The 4th And The 5th, The 8th Bldg., Lihao Industry Zone, Ainan Rd., No.78, Baolong St., Longgang Dist., Shenzhen 518116, China
| 料号 |
12D020
|
| 品牌 |
Indus-c |
| 最小订单量 |
100 |
| 原产地 | 中国，深圳市 |
| 交货期 |
3周 |
| 标准 | IEC 61076-2-101 |
| 焊接方式 | 焊接 |
| 锁紧方式 | 螺锁 |
| 防护等级 | IP67, IP68, IP69K |
| 线规(平方数) | 0.14mm²-0.75mm² |
| 线号(平方数) | 26AWG-18AWG |
| 插拔次数 | >100次 |
| 操作温度 | -40°C~+85°C |
| 海关编码 | 8538900000 |
| 环境符合标准 | RoHs, Reach |
| 额定电压 | 30V |
| 额定电流 | 1.5A |
| 接触电阻 | ≤5mΩ |
| 绝缘电阻 | ≥100MΩ |
| 胶芯 | TPU |
| 端子 | 磷铜镀金 |
| 螺母和铜壳 | 黄铜镀镍 |
| 胶圈 | 氟胶圈 |
