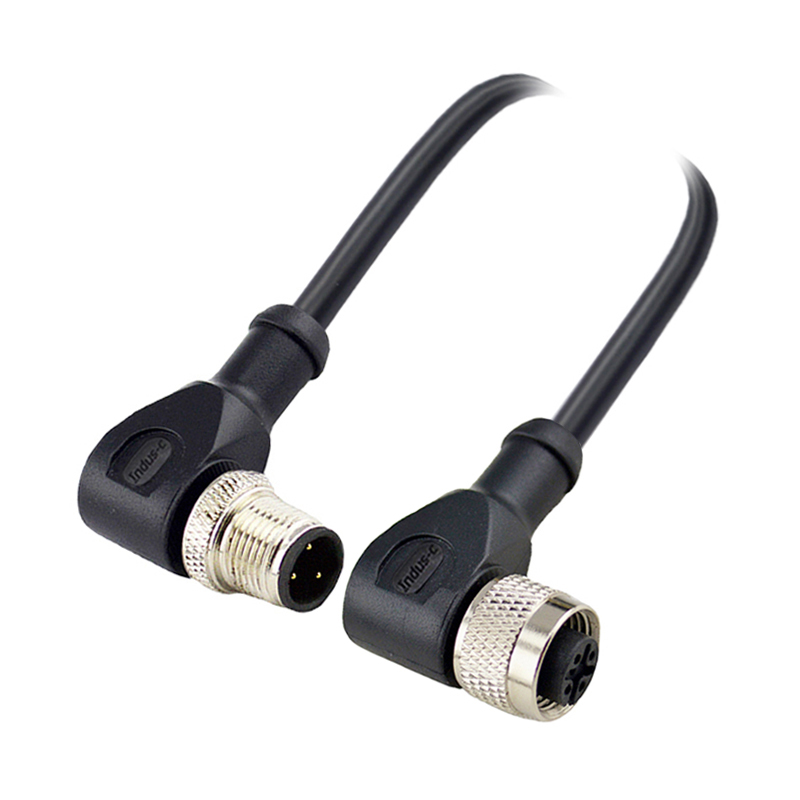

.jpg "M12 3pins A code male right angle to female right angle molded cable,shielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "M12 3pins A code male right angle to female right angle molded cable,shielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "M12 3pins A code male right angle to female right angle molded cable,shielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "M12 3pins A code male right angle to female right angle molded cable,shielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "M12 3pins A code male right angle to female right angle molded cable,shielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
| Part no | 12L00649 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
| Standards | IEC 61076-2-101 |
| Termination | Solder and over-mold |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm²-0.75mm² |
| Wire gauge(AWG) | 26AWG-18AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -40°C~+105°C |
| Customs tariff number | 8518900001 |
| Environmental compliance | RoHS, Reac |
| 3Pin | 250V |
| Rated voltage | 4A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector body | TPU |
| Male pin | Brass with gold plated |
| Female pin | Phosphorus copper with gold plated |
| Screw | Brass with nickel plated |
| RoHS & REACH Declaration | 12L00649 |
M12 A code cable assembly according to IEC 61076-2-101 has 3pins, 4pins, 5pins, 8pins, 12pins, 17pins. The highest waterproof grade is IP69K. Any length is available. INDUS-CONNECTOR always provide customized design to cover the whole requir
View More
M12 A code cable assembly according to IEC 61076-2-101 has 3pins, 4pins, 5pins, 8pins, 12pins, 17pins. The highest waterproof grade is IP69K. Any length is available. INDUS-CONNECTOR always provide customized design to cover the whole requir
View More
M12 A code cable assembly according to IEC 61076-2-101 has 3pins, 4pins, 5pins, 8pins, 12pins, 17pins. The highest waterproof grade is IP69K. Any length is available. INDUS-CONNECTOR always provide customized design to cover the whole requir
View More
Part no 12L00829 Brand Indus-c MOQ 100 Place of origin Shenzhen city, China Delivery time 3 weeks
View More
+86 - 138 0253 0727
2 Floors, The 4th And The 5th, The 8th Bldg., Lihao Industry Zone, Ainan Rd., No.78, Baolong St., Longgang Dist., Shenzhen 518116, China
| 料号 | 12L00649 |
| 品牌 |
Indus-c |
| 最小订单量 |
100 |
| 原产地 | 中国，深圳市 |
| 交货期 |
3周 |
| 标准 | IEC 61076-2-101 |
| 焊接方式 | 焊接和成型 |
| 锁紧方式 | 螺锁 |
| 防护等级 | IP67, IP68, IP69K |
| 线规(平方数) | 0.14mm²-0.75mm² |
| 线号(平方数) | 26AWG-18AWG |
| 插拔次数 | >100次 |
| 操作温度 | -40°C~+105°C |
| 海关编码 | 8518900001 |
| 环境符合标准 | RoHs, Reach |
| 3针 | 250V |
| 额定电流 | 4A |
| 接触电阻 | ≤5mΩ |
| 绝缘电阻 | ≥100MΩ |
| 成型 | TPU |
| 母端子 | 磷铜镀金 |
| 螺丝 | 黄铜镀镍 |
| 公端子 | 黄铜镀金 |
| 屏蔽罩 | 黄铜镀镍 |
金达思A型M12面板式连接器分为前锁安装和后锁安装。然而面板式连接器又分为板端、焊线式和带线。请联系我们选择正确的产品。
