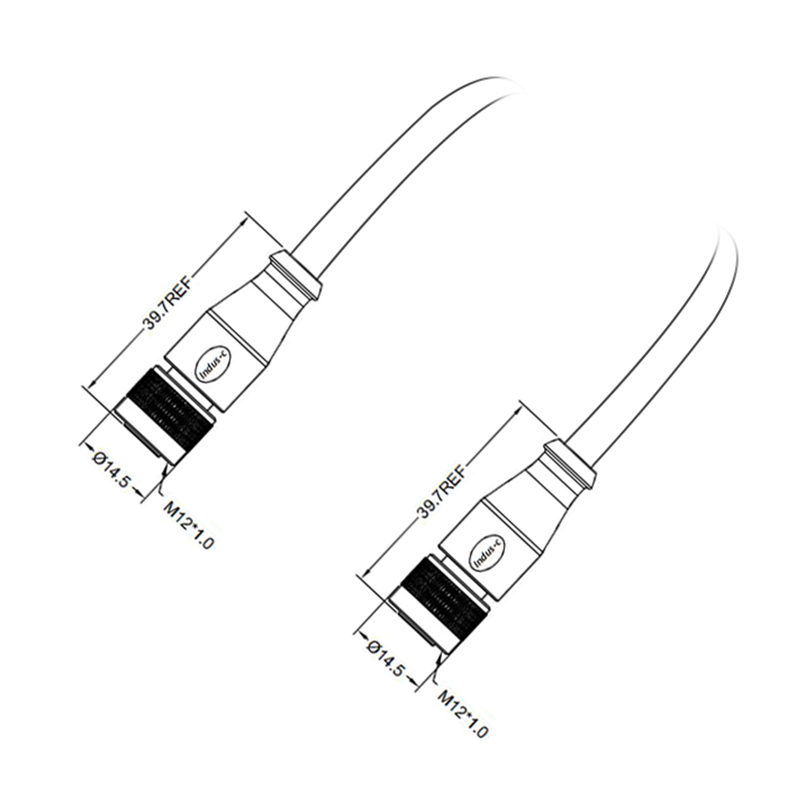

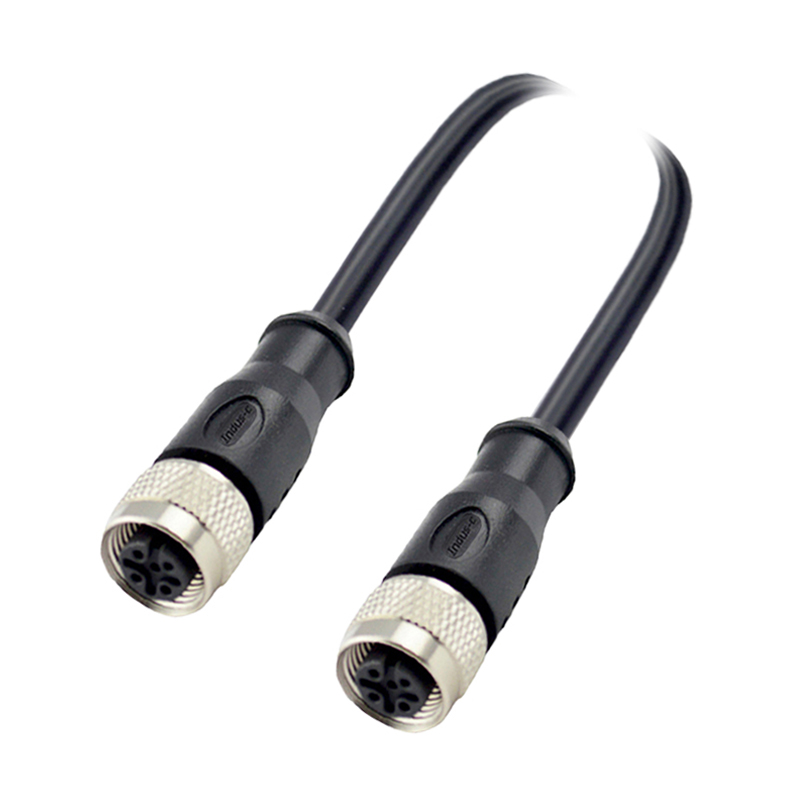

.jpg "M12 3pins A code female straight to female straight molded cable,unshielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "M12 3pins A code female straight to female straight molded cable,unshielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "M12 3pins A code female straight to female straight molded cable,unshielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "M12 3pins A code female straight to female straight molded cable,unshielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
| Part no | 12L00561 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
| Standards | IEC 61076-2-101 |
| Termination | Solder and over-mold |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm²-0.75mm² |
| Wire gauge(AWG) | 26AWG-18AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -40°C~+105°C |
| Customs tariff number | 8518900001 |
| Environmental compliance | RoHS, Reac |
| 3Pin | 250V |
| Rated voltage | 4A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector body | TPU |
| Female pin | Phosphorus copper with gold plated |
| Screw | Brass with nickel plated |
| RoHS & REACH Declaration | 12L00561 |
M12 A code cable assembly according to IEC 61076-2-101 has 3pins, 4pins, 5pins, 8pins, 12pins, 17pins. The highest waterproof grade is IP69K. Any length is available. INDUS-CONNECTOR always provide customized design to cover the whole requir
