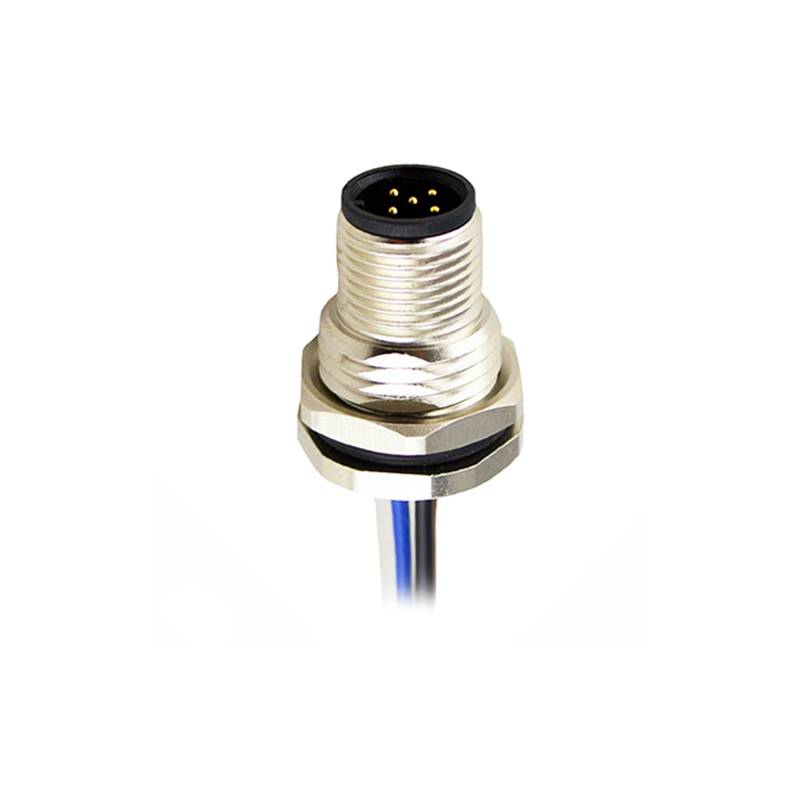

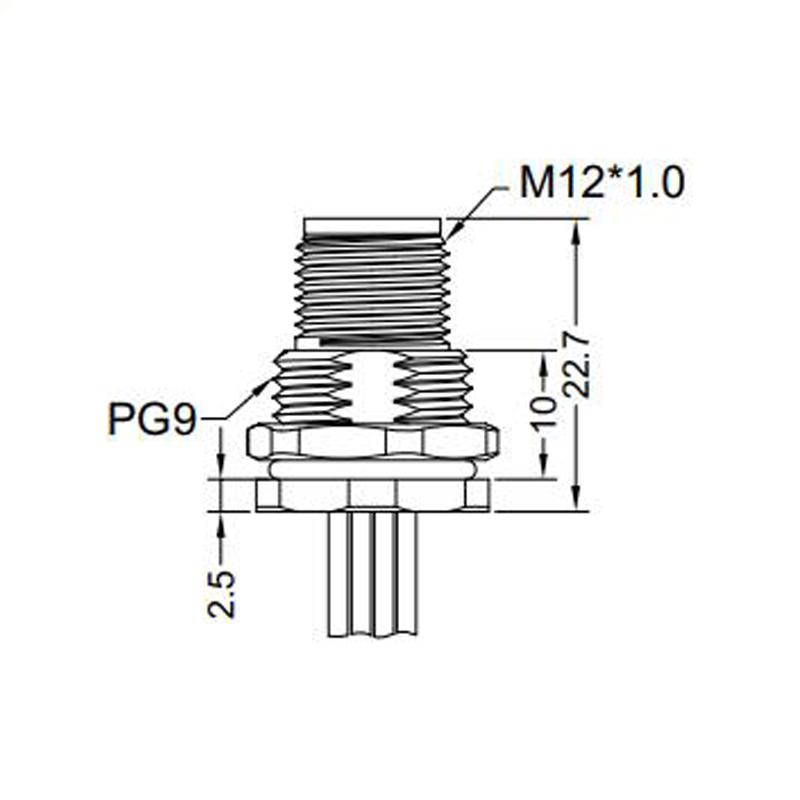

M12 5pins B code male straight front panel mount connector PG9 thread,unshielded,single wires,brass with nickel plated shell
Inquire Online
Download
General information
| Part no |
12D041
|
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-101 |
| Termination | Solder |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm²-0.75mm² |
| Wire gauge(AWG) | 26AWG-18AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reac |
Electrical parameters
| 5Pin | 60V |
| Rated voltage | 4A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
Material
| Connector body | TPU |
| Pin |
Brass with gold plated
|
| Screw | Brass with nickel plated |
|
Gasket
|
Fluorine ring
|
Download
| RoHS & REACH Declaration | 12D041 |
NEED MORE INFORMATIONS?
Contact usmating connectors
-
M12 5pins B code male straight rear panel mount connector,unshielded PG9 thread,single wires,brass wi -

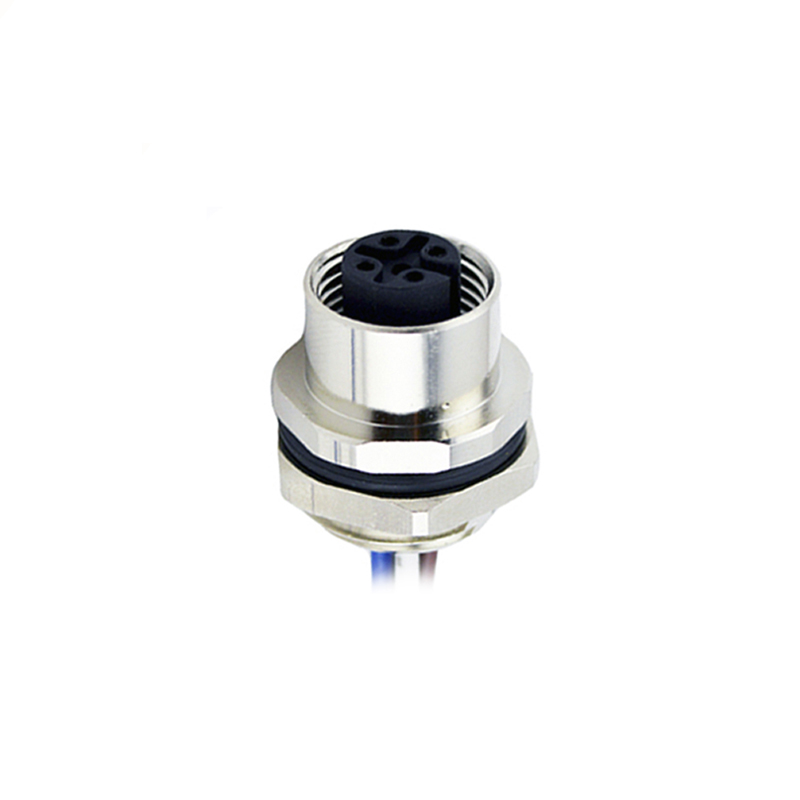

M12 5pins B code female straight front panel mount connector,unshielded PG9 thread,single wires,brasPart no 12B043 Brand Indus-c MOQ 100 Place of origin Shenzhen city, China Delivery time 3 weeks
