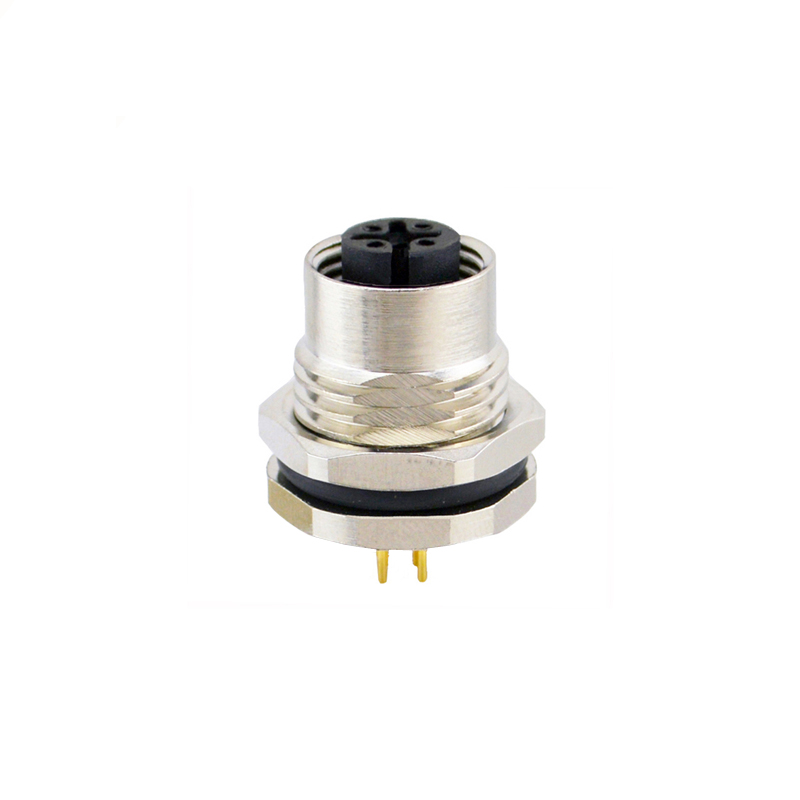

M12 4pins D code female straight front panel mount connector M16 thread,unshielded,insert,brass with nickel plated she
Inquire Online
Download
General information
| Part no | 12B055 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-101 |
| Termination | Solder PCB |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reac |
Electrical parameters
| 4Pin | 250V |
| Rated voltage | 4A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
Material
| Connector body | TPU |
| Pin | Phosphorus copper with gold plated |
| Screw | Brass with nickel plated |
| Gasket | Fluorine ring |
Download
| RoHS & REACH Declaration | 12B055 |
