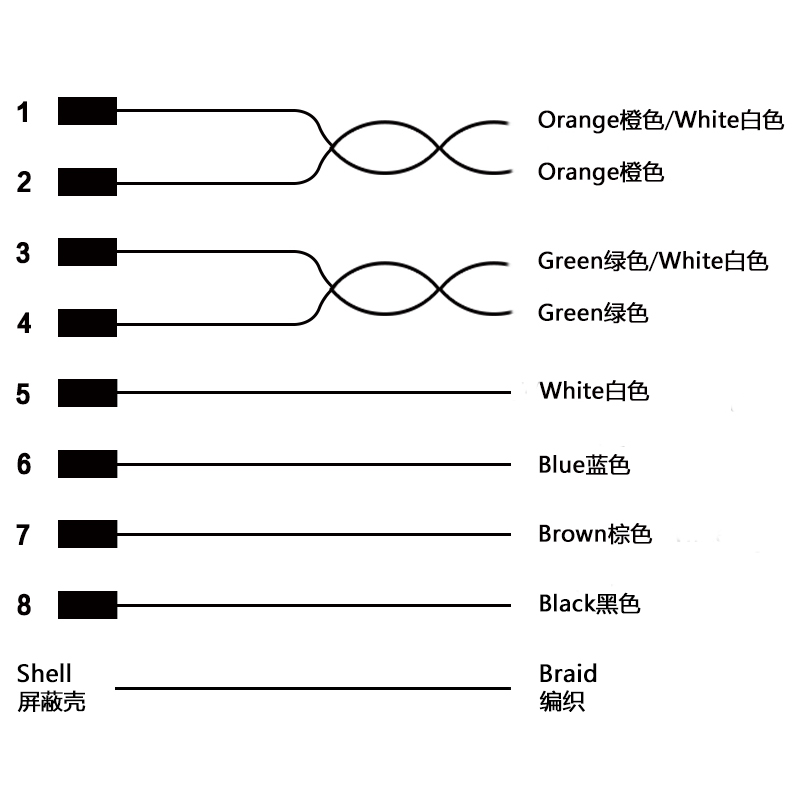

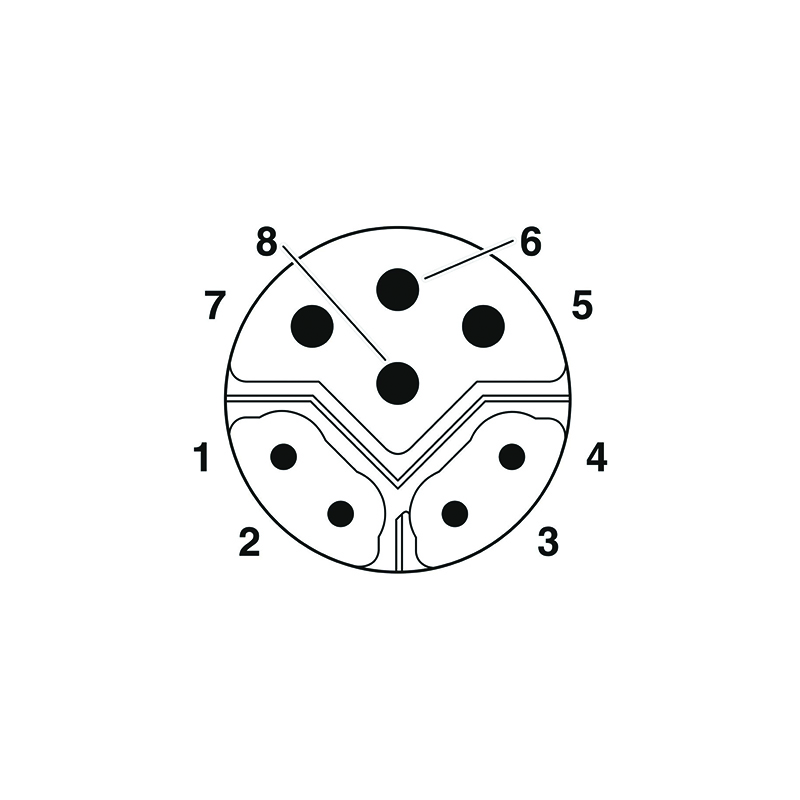

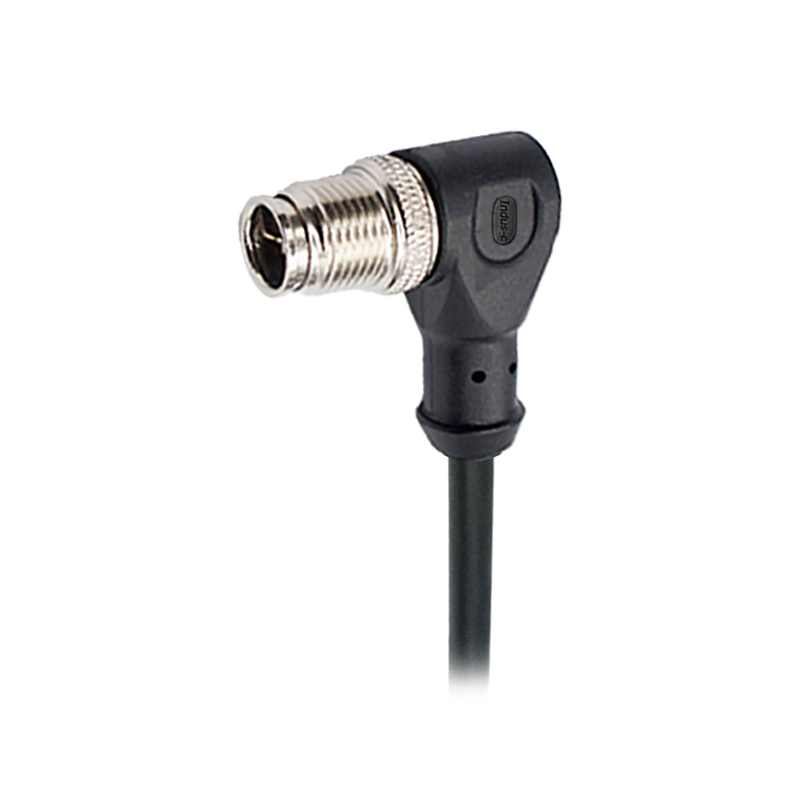

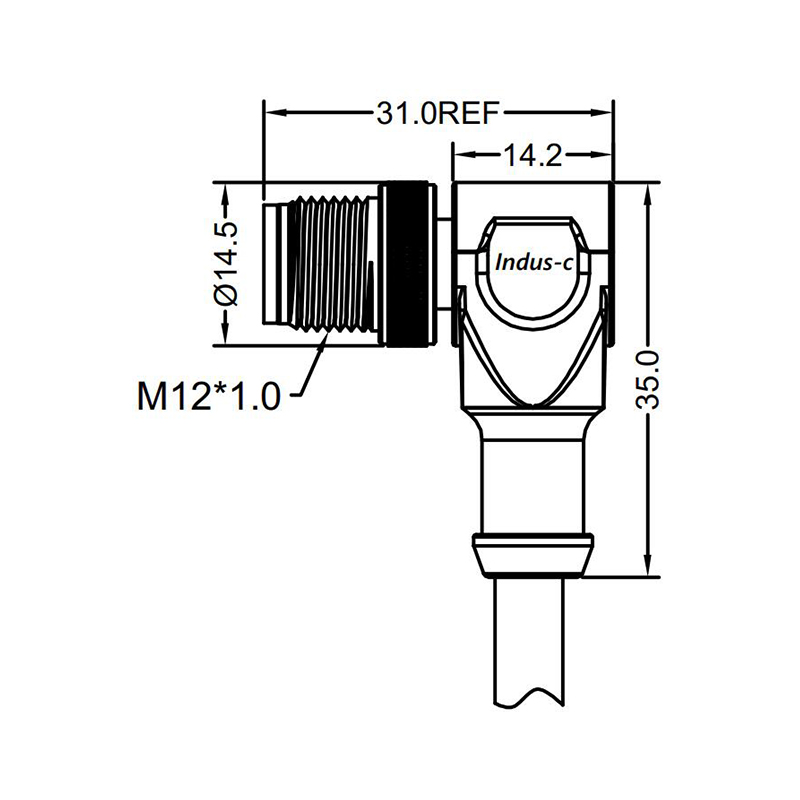

M12 8pins Y code male right angle cable,shielded,PVC,-40°C~+105°C,[26AWG*2P(CAT5)+aluminum foil+braid]+20AWG*4C+aluminum foil+braid,brass copper

Inquire Online
Download

General information

Part no  12L01421
Brand

Indus-c

MOQ

100

Place of origin     Shenzhen city, China
Delivery time

3 weeks


General features

Standards IEC 61076-2-101
Termination Solder
Connector locking system Screw
Degree of protection IP67, IP68, IP69K
Wire gauge(mm²) 0.14mm²
Wire gauge(AWG) 26AWG
Mechanical operation >100 mating cycles
Ambient temperature(operation) -25°C~+85°C
Environmental compliance   RoHS, Reach

Electrical parameters

8Pin 60V
Rated voltage 0.5A
Contact resistance ≤5mΩ
Insulation resistance ≥100MΩ

Material

Connector body TPU
Pin Brass with gold plated
Screw Brass with nickel plated

Download

RoHS & REACH Declaration 12L01421

NEED MORE INFORMATIONS?

Contact us

mating connectors
