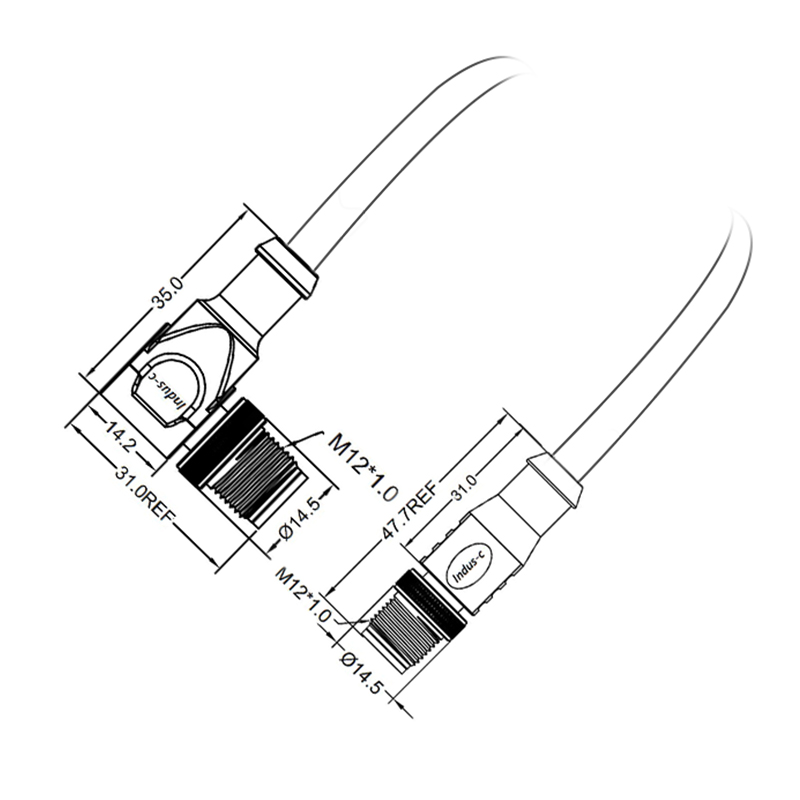

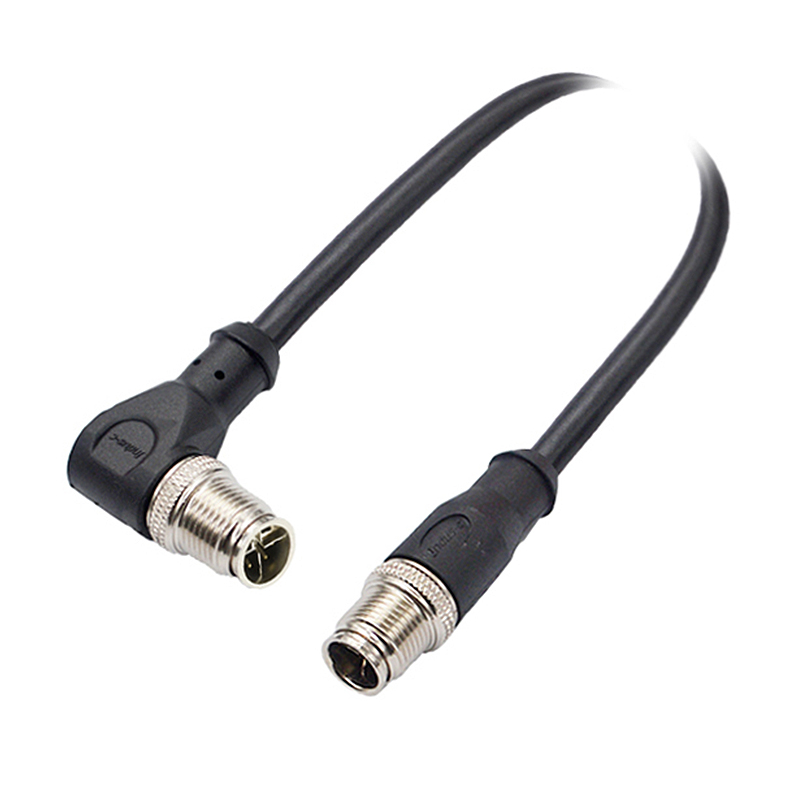

M12 8pins X code male straight to male right angle molded cable,shielded,PVC,-40°C~+105°C,CAT6 26AWG*4P,brass with nickel plated screw
Inquire Online
Download
General information
| Part no | 12L01387 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-101 |
| Termination | Solder |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm² |
| Wire gauge(AWG) | 26AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Environmental compliance | RoHS, Reach |
Electrical parameters
| 8Pin | 60V |
| Rated voltage | 0.5A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
Material
| Connector body | TPU |
| Pin | Brass with gold plated |
| Screw | Brass with nickel plated |
Download
| RoHS & REACH Declaration | 12L01387 |
