.jpg "M12 2pins C code male straight to male right angle molded cable,unshielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "M12 2pins C code male straight to male right angle molded cable,unshielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "M12 2pins C code male straight to male right angle molded cable,unshielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "M12 2pins C code male straight to male right angle molded cable,unshielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
Part no 12L01200 Brand Indus-c MOQ 100 Place of origin Shenzhen city, China Delivery time 3 weeks
View More
EN / 中文
EN / 中文

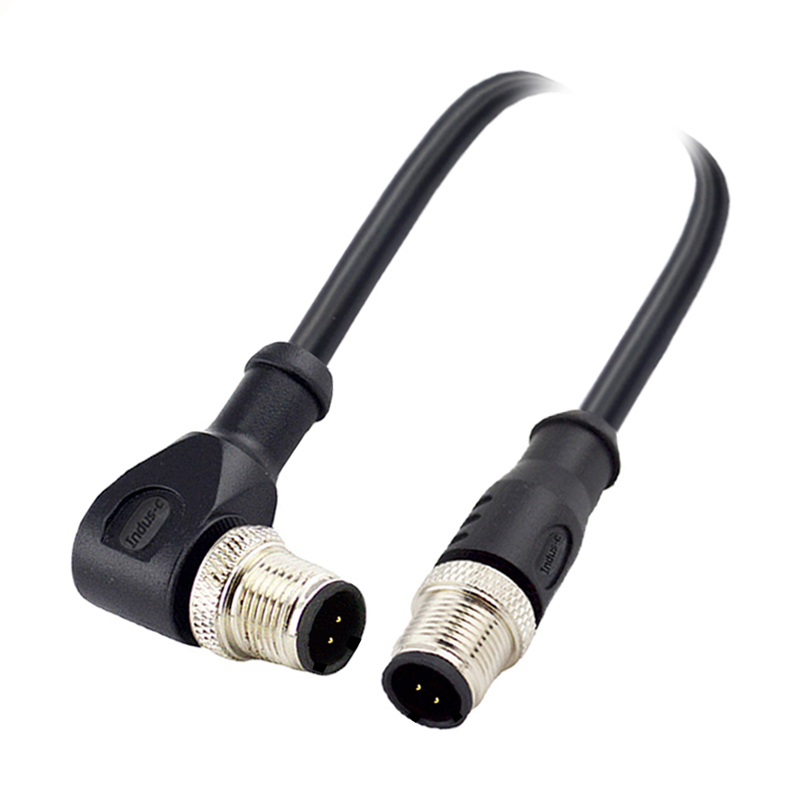

M12 2pins C code male straight to male right angle molded cable,unshielded,PUR,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw
Inquire Online
Download
General information
| Part no | 12L01068 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
General features
| Standards | IEC 61076-2-101 |
| Termination | Solder and over-mold |
| Connector locking system | Screw |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm²-0.75mm² |
| Wire gauge(AWG) | 26AWG-18AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -40°C~+105°C |
| Customs tariff number | 8518900001 |
| Environmental compliance | RoHS, Reach |
Electrical parameters
| 2Pin | 250V |
| Rated voltage | 4A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
Material
| Connector body | TPU |
| pin | Brass with gold plated |
| Screw | Brass with nickel plated |
Download
| RoHS & REACH Declaration | 12L01068 |
