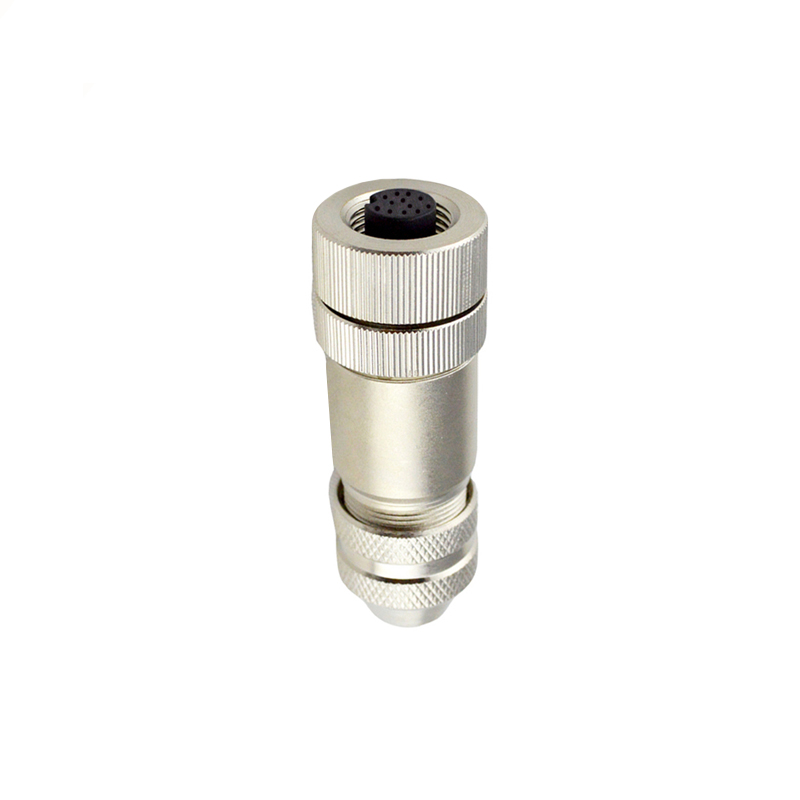

.jpg "M12 12pins A code female straight metal assembly connector PG7 thread,shielded,brass with nickel plated housing,suitable cable diameter 4.0mm-6.0mm")
.jpg "M12 12pins A code female straight metal assembly connector PG7 thread,shielded,brass with nickel plated housing,suitable cable diameter 4.0mm-6.0mm")
.jpg "M12 12pins A code female straight metal assembly connector PG7 thread,shielded,brass with nickel plated housing,suitable cable diameter 4.0mm-6.0mm")
| Part no |
12ZS74-PG7
|
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
| Standards | IEC 61076-2-101 |
| Termination | Screw clamp |
| Degree of protection | IP67 |
| Wire gauge | 0.14mm²-0.75mm² |
| Wire gauge | 26AWG-18AWG |

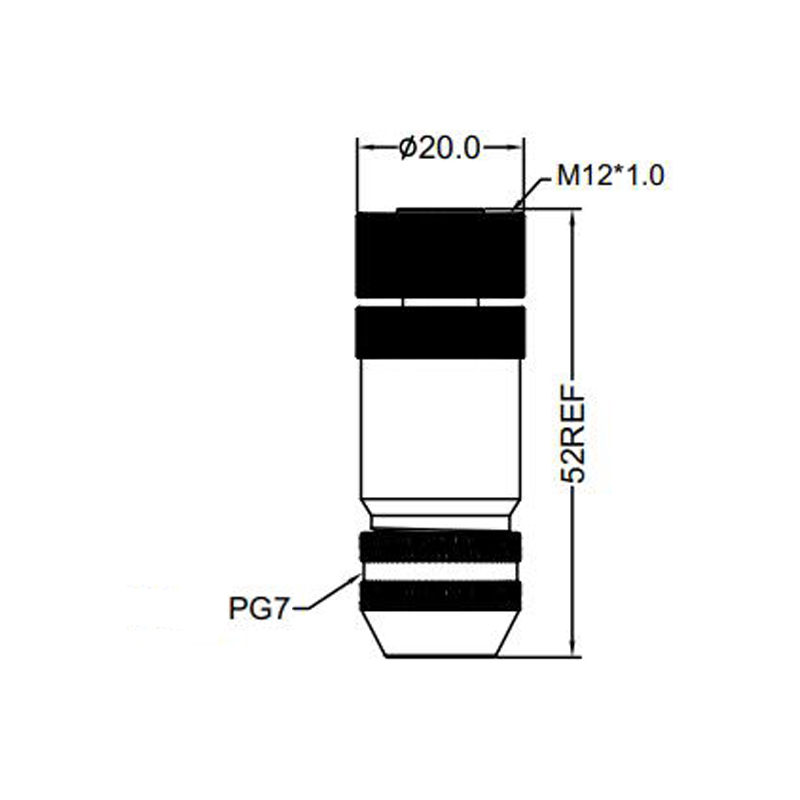

| PG7 hole suitable cable outer diameter | 4.0mm-6.0mm |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8538900000 |
| Environmental compliance | RoHS, Reac |

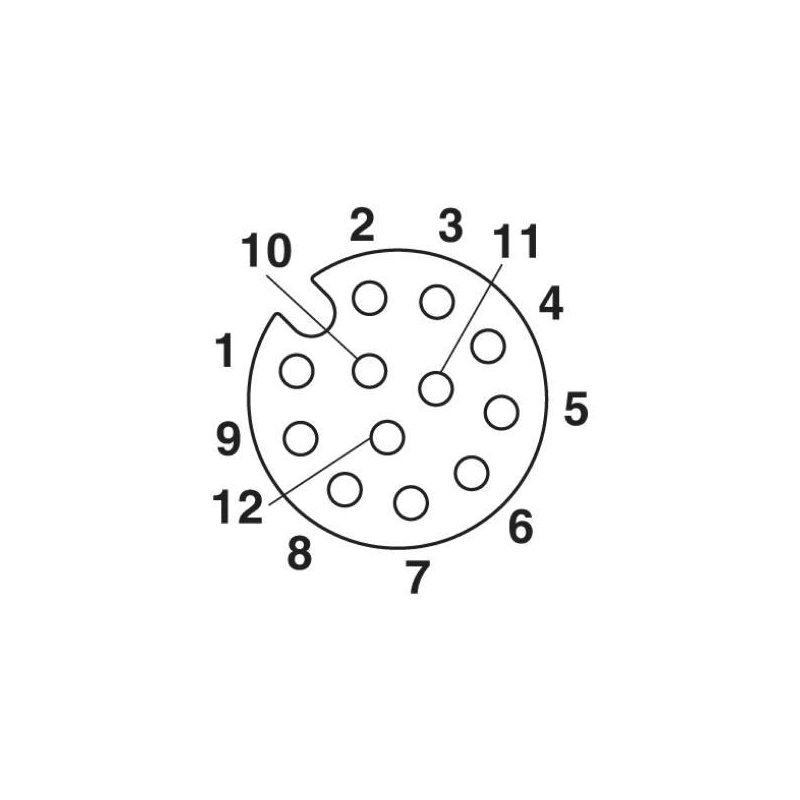

| 12Pin | 30V |
| Rated voltage | 1.5A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector body | TPU |
| Pin | Phosphorus copper with gold plated |
| Screw | Brass with nickel plated |
| RoHS & REACH Declaration | 12ZS74-PG7 |
M12 connectors for assembly provide the best connection technology for every application where standard cable assemblies with over-molded connectors are not an option. INDUS-CONNECTOR offers PG7 hole which is suitable for cable diameter 4.0m
View More
M12 connectors for assembly provide the best connection technology for every application where standard cable assemblies with over-molded connectors are not an option. INDUS-CONNECTOR offers PG7 hole which is suitable for cable diameter 4.0m
