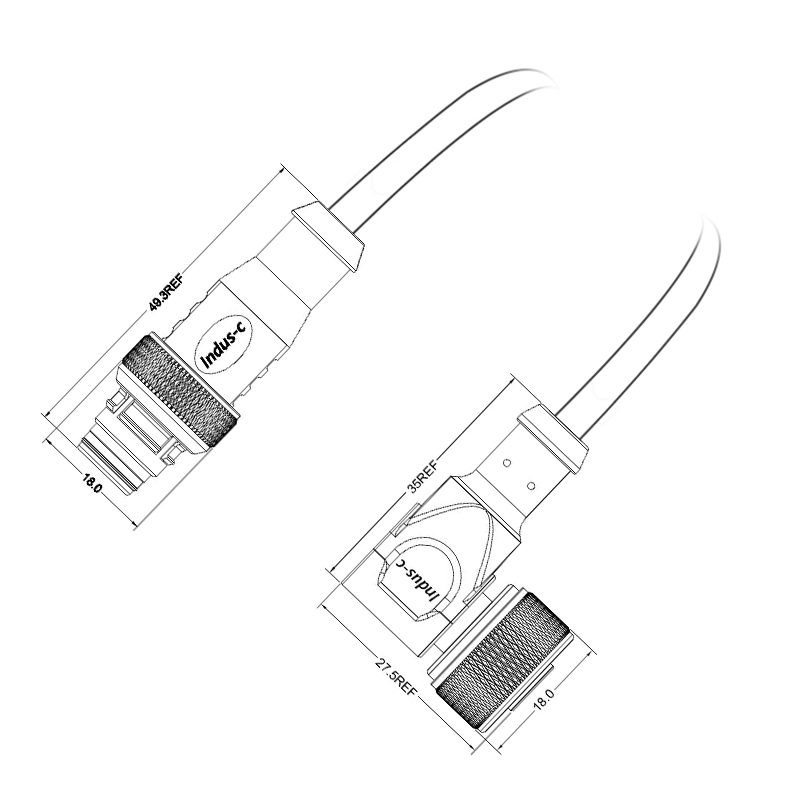

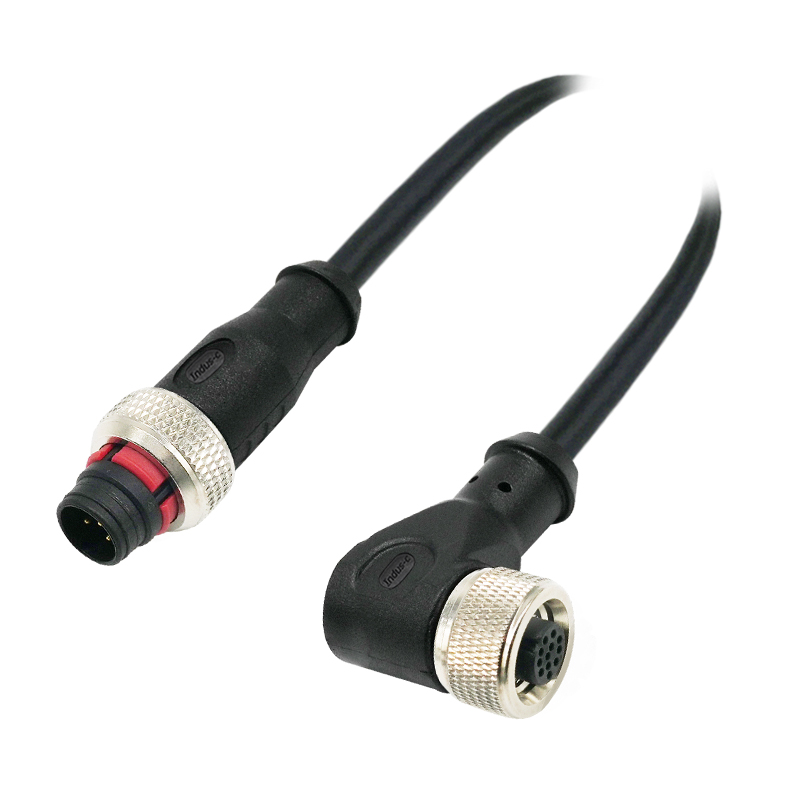

.jpg "Push-pull m12 8pins A code male straight to female right angle molded cable,unshielded,PVC,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "Push-pull m12 8pins A code male straight to female right angle molded cable,unshielded,PVC,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "Push-pull m12 8pins A code male straight to female right angle molded cable,unshielded,PVC,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "Push-pull m12 8pins A code male straight to female right angle molded cable,unshielded,PVC,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "Push-pull m12 8pins A code male straight to female right angle molded cable,unshielded,PVC,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "Push-pull m12 8pins A code male straight to female right angle molded cable,unshielded,PVC,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "Push-pull m12 8pins A code male straight to female right angle molded cable,unshielded,PVC,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
.jpg "Push-pull m12 8pins A code male straight to female right angle molded cable,unshielded,PVC,-40°C~+105°C,22AWG 0.34mm²,brass with nickel plated screw")
| Part no | 12L01978 |
| Brand |
Indus-c |
| MOQ |
100 |
| Place of origin | Shenzhen city, China |
| Delivery time |
3 weeks |
| Standards | IEC 61076-2-101 |
| Termination | Solder and over-mold |
| Connector locking system | Push-pull |
| Degree of protection | IP67, IP68, IP69K |
| Wire gauge(mm²) | 0.14mm²-0.75mm² |
| Wire gauge(AWG) | 26AWG-18AWG |
| Mechanical operation | >100 mating cycles |
| Ambient temperature(operation) | -10°C~+80°C |
| Customs tariff number | 8518900001 |
| Environmental compliance | RoHS, Reach |
| 8Pin | 30V |
| Rated voltage | 2A |
| Contact resistance | ≤5mΩ |
| Insulation resistance | ≥100MΩ |
| Connector body | TPU |
| Male pin | Brass with gold plated |
| Female pin | Phosphorus copper with gold plated |
| Screw | Brass with nickel plated |
table border=0 cellpadding=1 cellspacing=1 style=width: 500px;tbodytrtdPart nonbsp;/tdtd12L01891/td/trtrtdBrandnbsp; nbsp;/tdtdp class=p style=margin: 0pt; text-indent: 0pt; padding: 0pt; line-height: 12.5pt; background-image: initial; backg
View More
Part no 12L01960 Brand Indus-c MOQ 100 Place of origin
View More
Part no 12L02080 Brand Indus-c MOQ 100 Place of origin
View More
Part no 12L02025 Brand Indus-c MOQ 100 Place of origin
View More
+86 - 138 0253 0727
2 Floors, The 4th And The 5th, The 8th Bldg., Lihao Industry Zone, Ainan Rd., No.78, Baolong St., Longgang Dist., Shenzhen 518116, China
| 料号 | 12L01978 |
| 品牌 |
Indus-c |
| 最小订单量 |
100 |
| 原产地 | 中国，深圳市 |
| 交货期 |
3周 |
| 标准 | IEC 61076-2-101 |
| 焊接方式 | 焊接和成型 |
| 锁紧方式 | 快锁 |
| 防护等级 | IP67, IP68, IP69K |
| 线规(平方数) | 0.14mm²-0.34mm² |
| 线号(平方数) | 26AWG-18AWG |
| 插拔次数 | >100次 |
| 操作温度 | -25°C~+85°C |
| 海关编码 | 8518900001 |
| 环境符合标准 | RoHS, Reach |
| 8针 | 30V |
| 额定电流 | 2A |
| 接触电阻 | ≤5mΩ |
| 绝缘电阻 | ≥100MΩ |
| 胶芯 | TPU |
| 公端子 | 黄铜镀金 |
| 母端子 | 磷铜镀金 |
| 屏蔽罩 | 黄铜镀金 |
| 螺丝 | 黄铜镀镍 |
| 成型 | TPU |
金达思A型推拉式M12面板式连接器分为前锁安装和后锁安装。然而面板式连接器又分为板端、焊线式和带线。请联系我们选择正确的产品。
